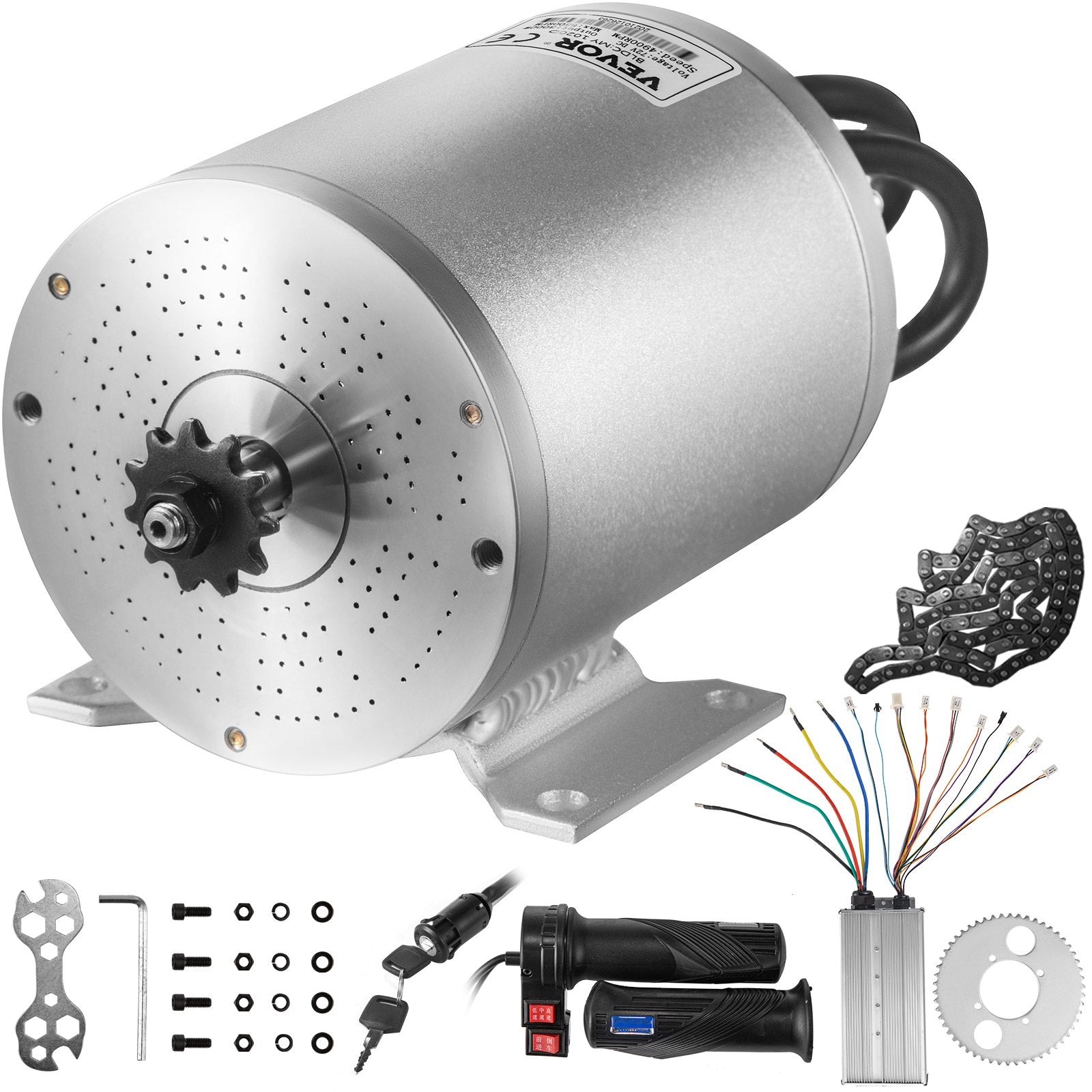

Electric Brushless DC Motor 72V 3000W Brushless Electric Motor 4900RPM Brushless Motor Kit with Controller and Throttle Handle for Electric Scooter E Bike Engine Motorcycle DIY Parts Conversion Kit
Electric Brushless DC Motor 72V 3000W Brushless Electric Motor 4900RPM Brushless Motor Kit with Controller and Throttle Handle for Electric Scooter E Bike Engine Motorcycle DIY Parts Conversion Kit
Couldn't load pickup availability

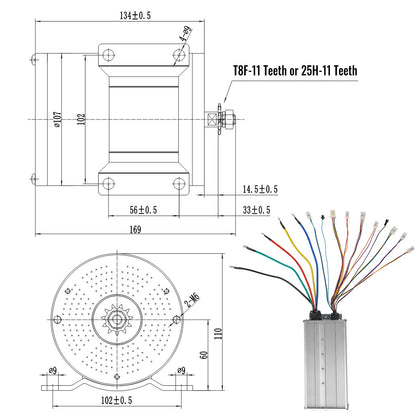

【FUNDAMENTAL PARAMETERS】 - This brushless electric motor is powerful and efficient. Model: MY1020D, Input voltage: 72V DC, Output power: 3000W, Rated current: ≤ 43A, Rated speed: 4900 RPM, Maximum speed: 6500 RPM, Sprocket: T8F-11 teeth, Horsepower: 4.07 HP, 8 oz torque: 8 oz.in / 6 Nm, Maximum current: 65A, No-load current: ≤ 4.0 A, Peak efficiency: ≥ 85%, Working temperature: < 120 °C / 248 ℉.

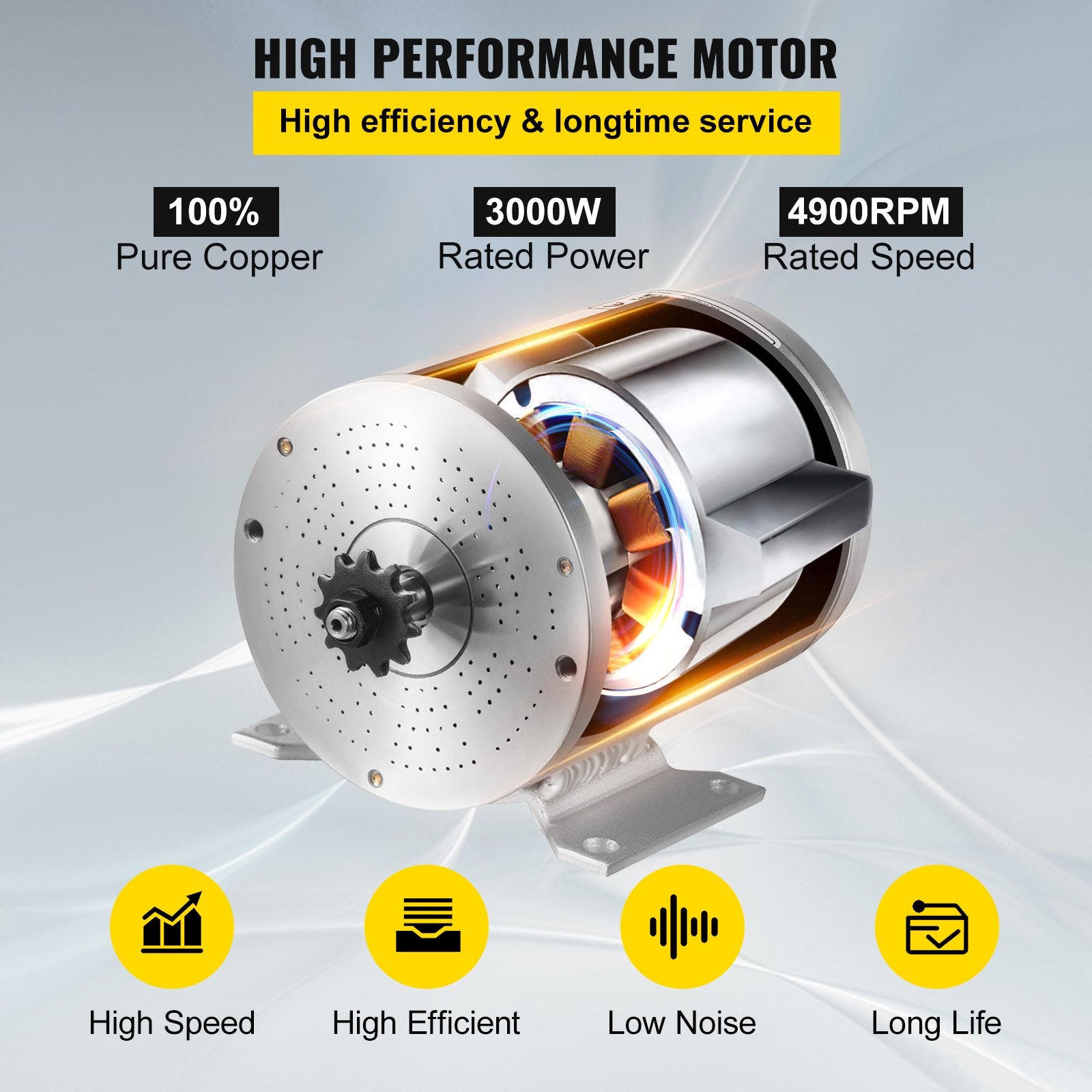

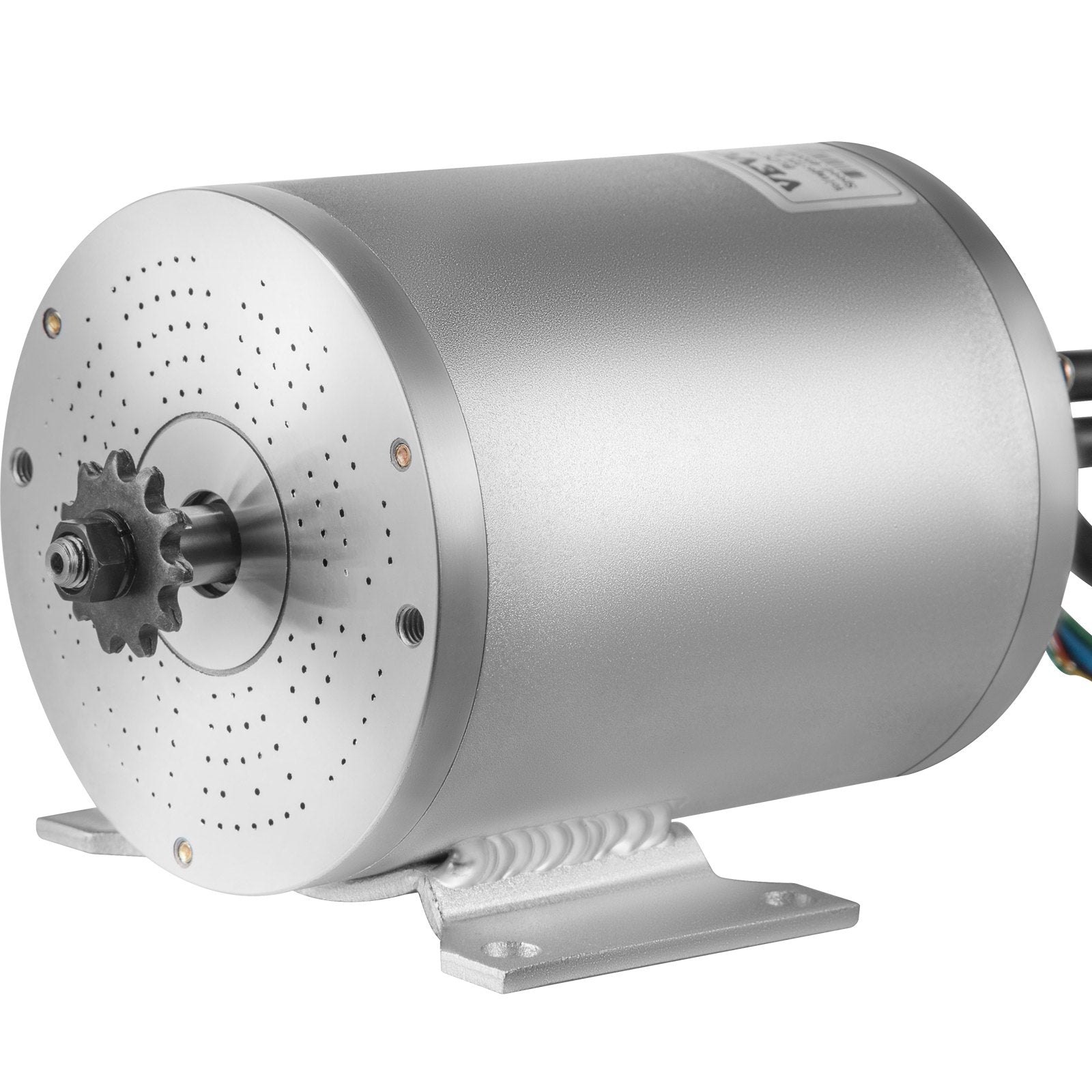

【3000W BRUSHLESS MOTOR】 - The brushless DC motor has a 100% copper core for low noise and excellent speed control performance. The high-precision rotor is made of high-tech finish for water resistance and high working efficiency.

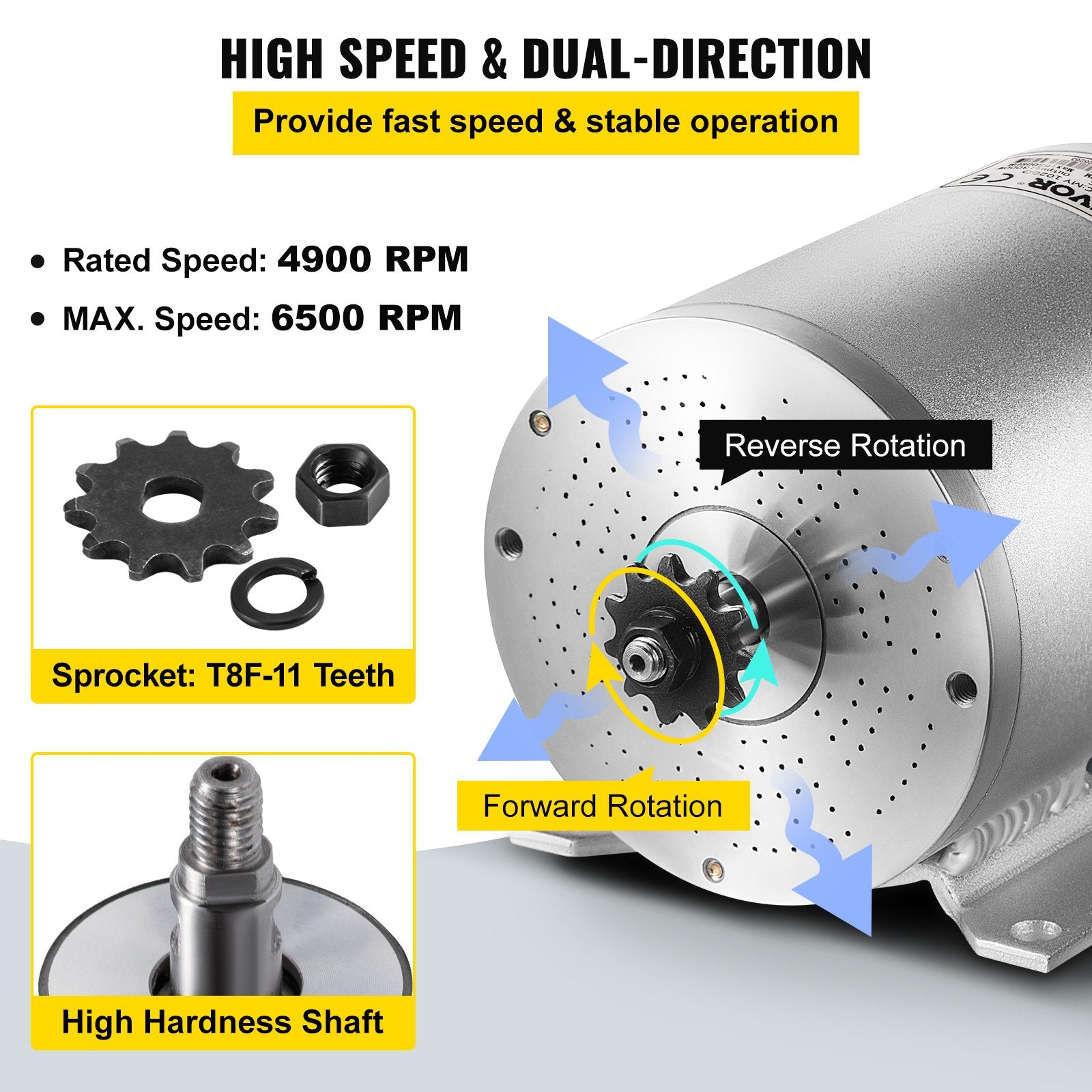

【STURDY ALUMINUM CONSTRUCTION】 - The electric go-kart motor has an aluminum alloy shell to resist heat, cold and corrosion, which is not easy to rust. This DC motor is a forward and reverse rotation motor so you can switch the rotation.

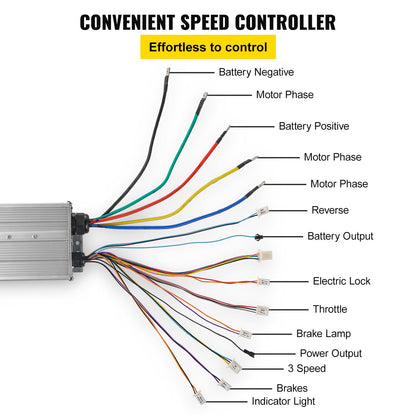

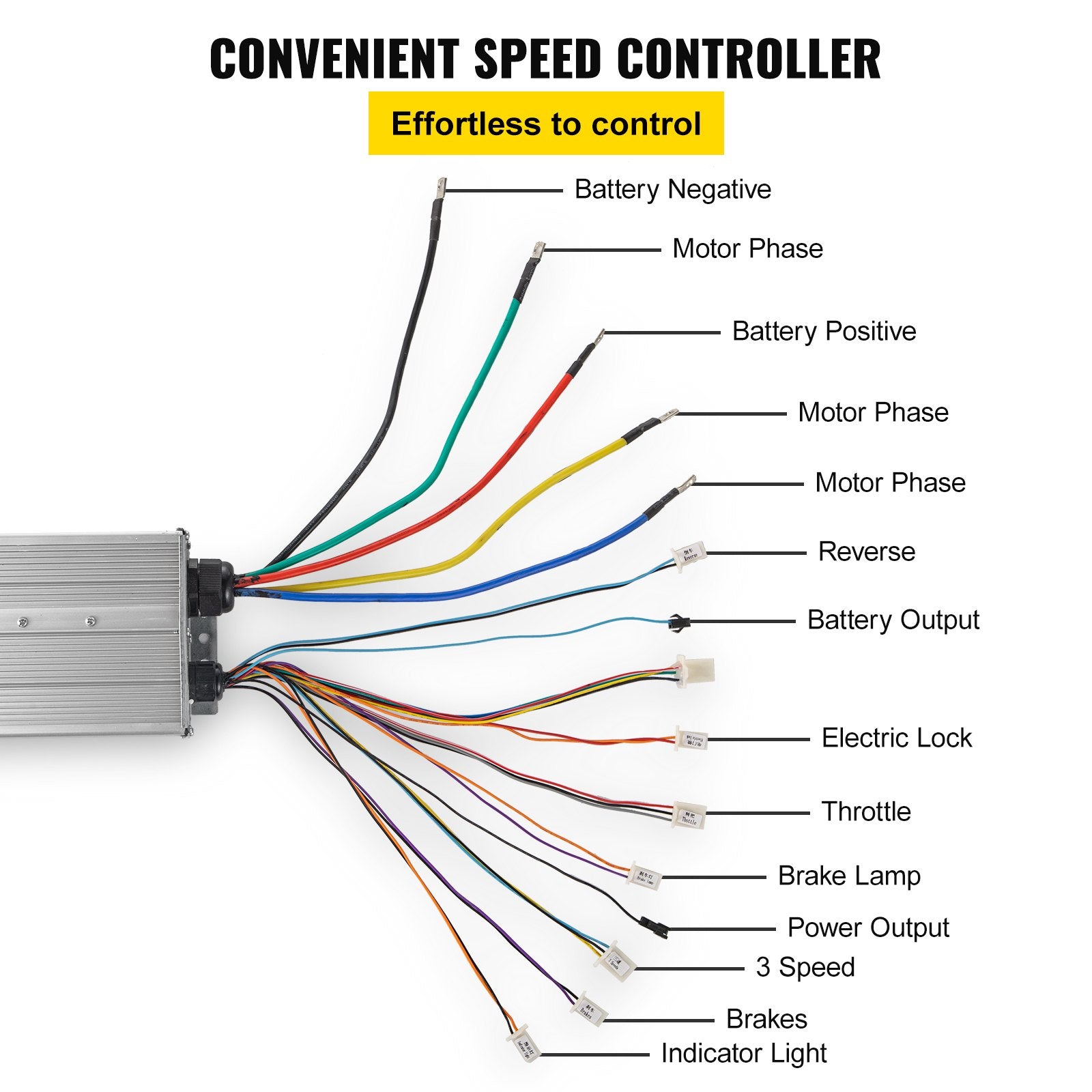

【SPEED CONTROLLER INCLUDED】 - This brushless go-kart motor comes with a controller to provide speed control in the desired way for ranger, speed adjustment: Potentiometer. Model: BY24WF01-B, Current: 65A, Phase degree: 120°, Conversion efficiency: ≥ 85%, Controller under voltage protection Voltage: 62V.
