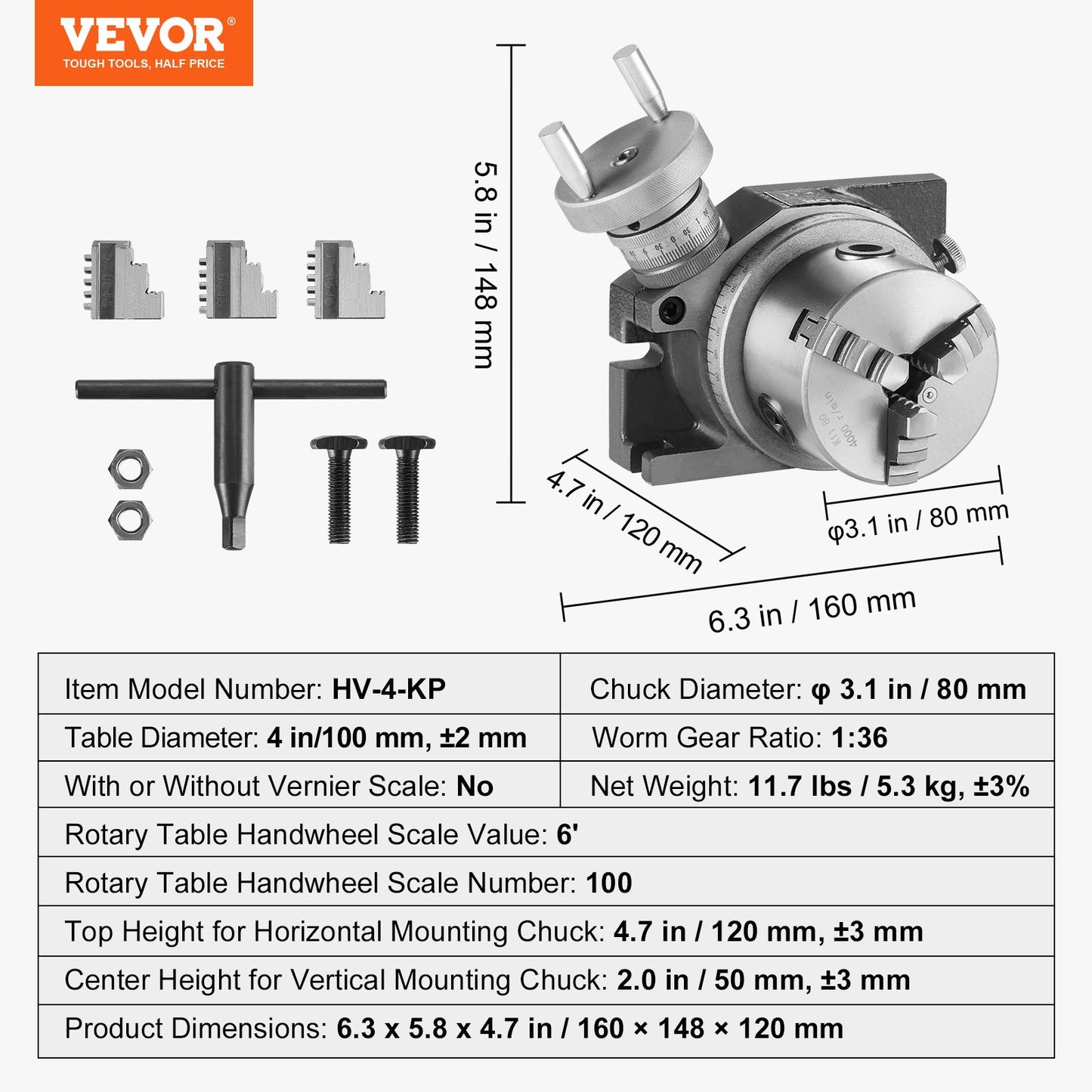

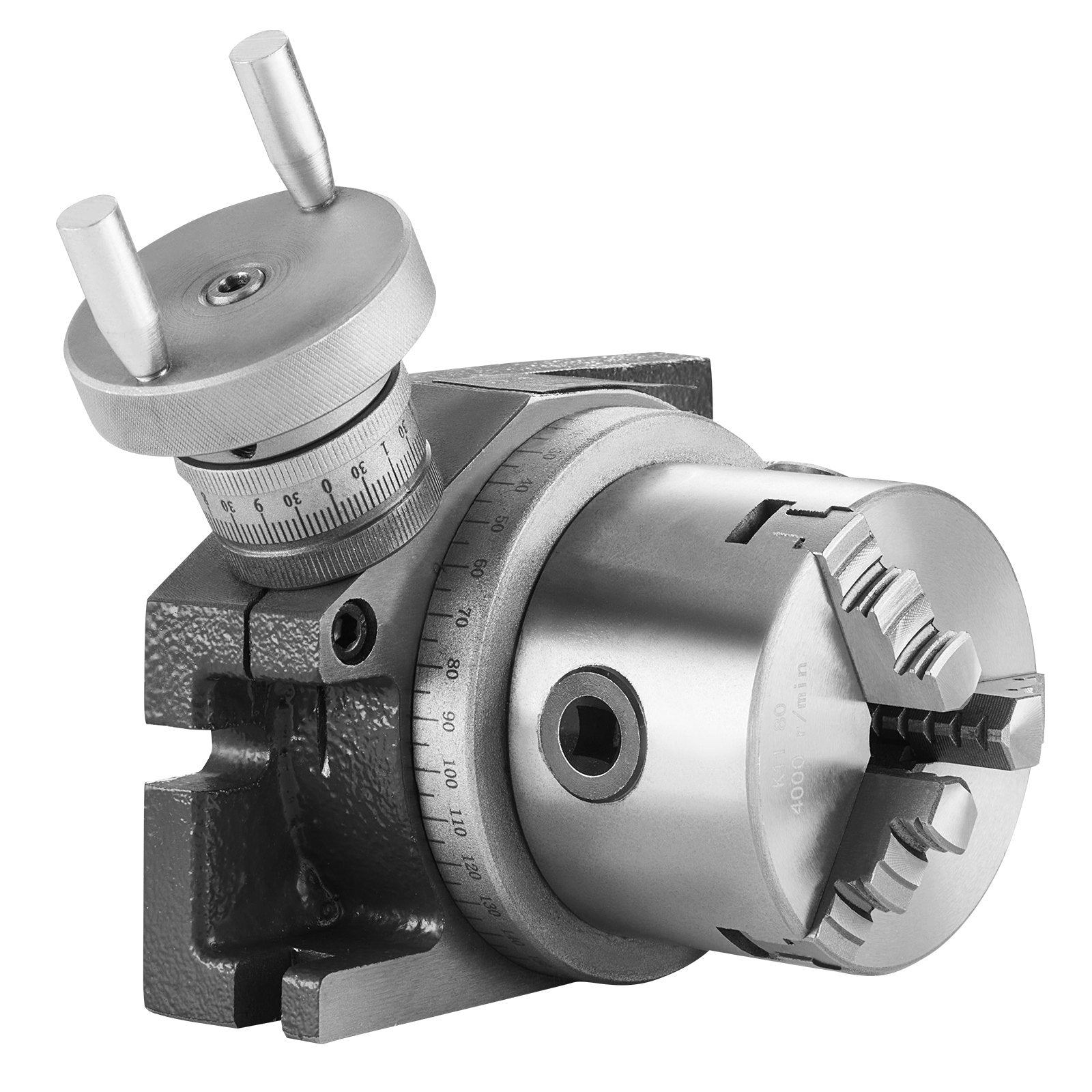

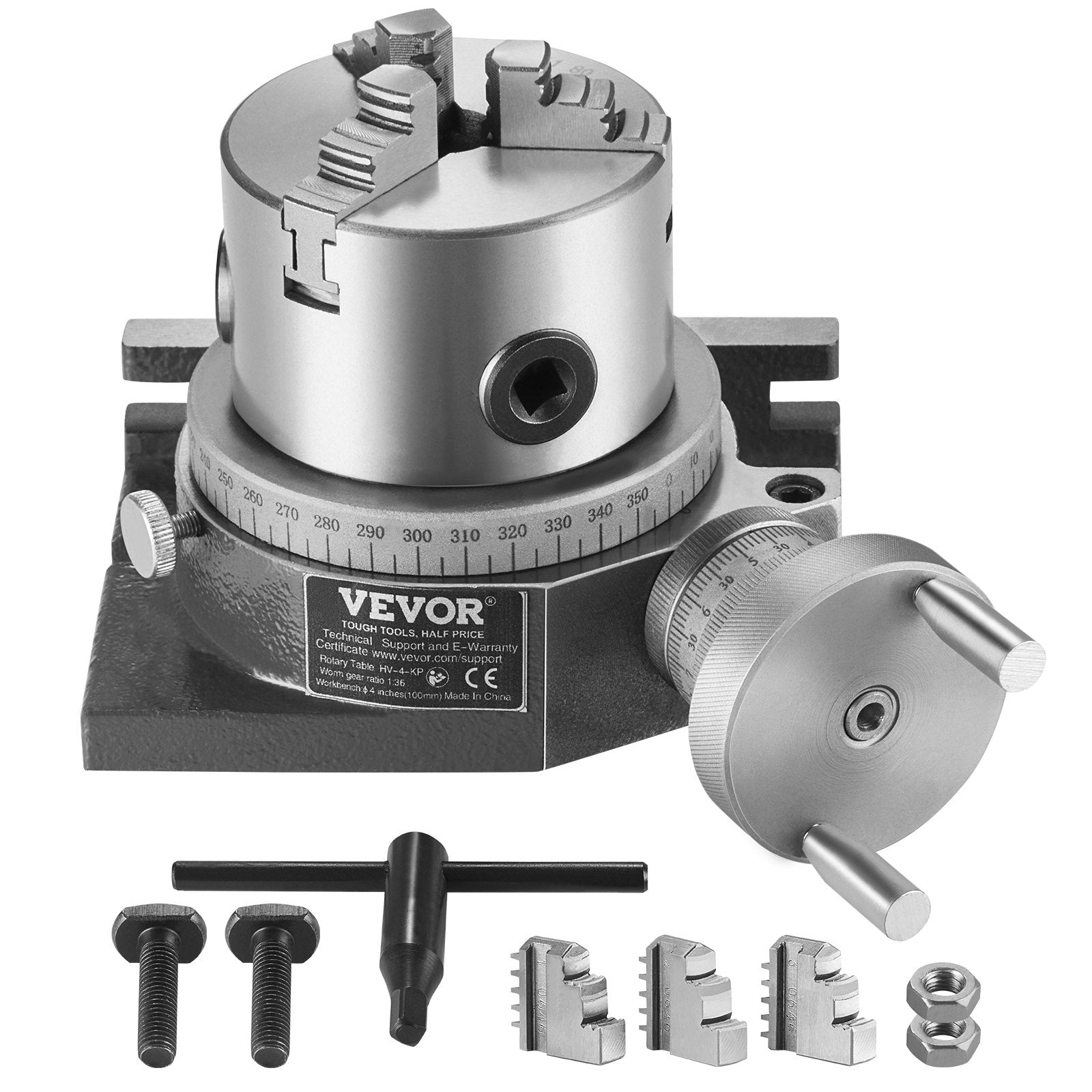

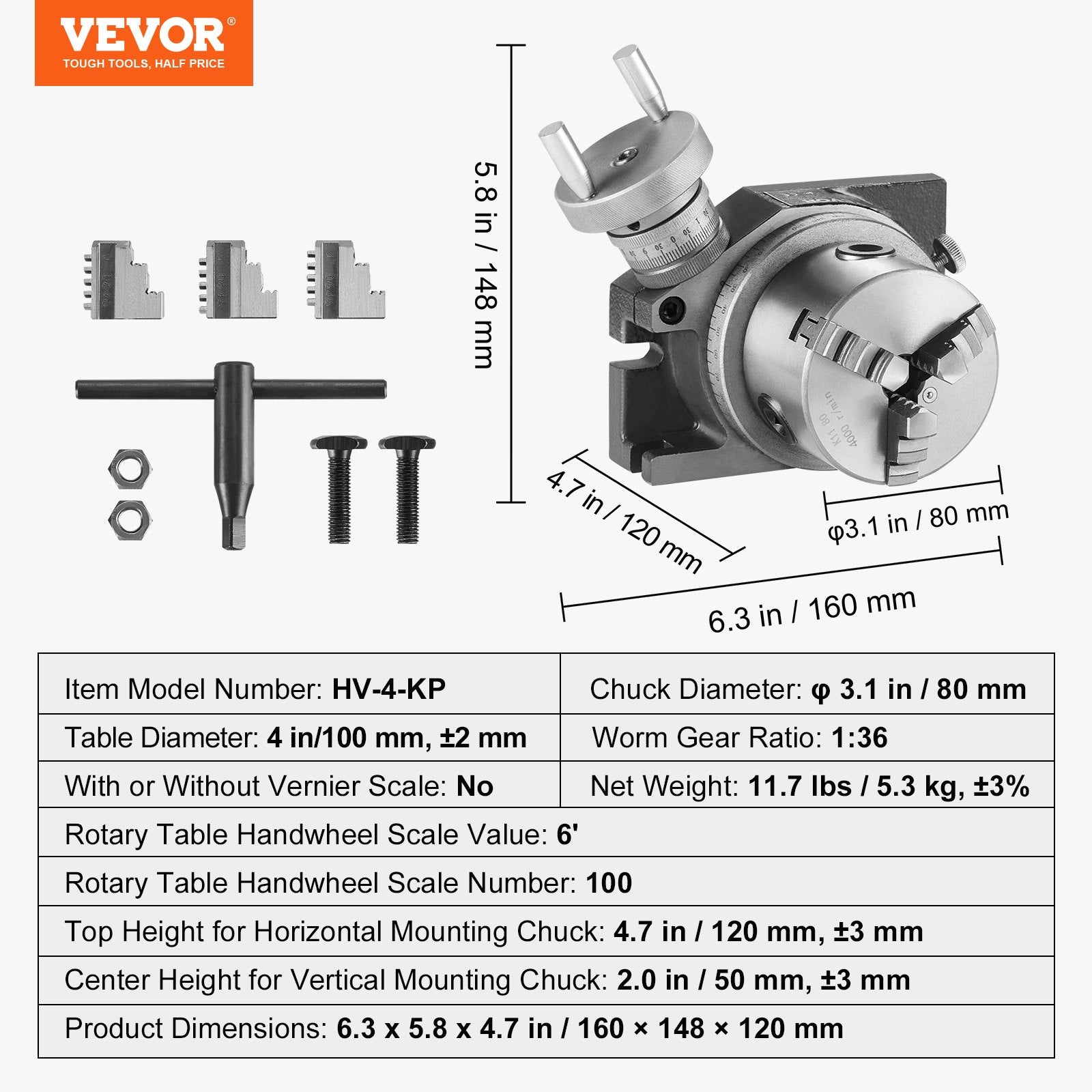

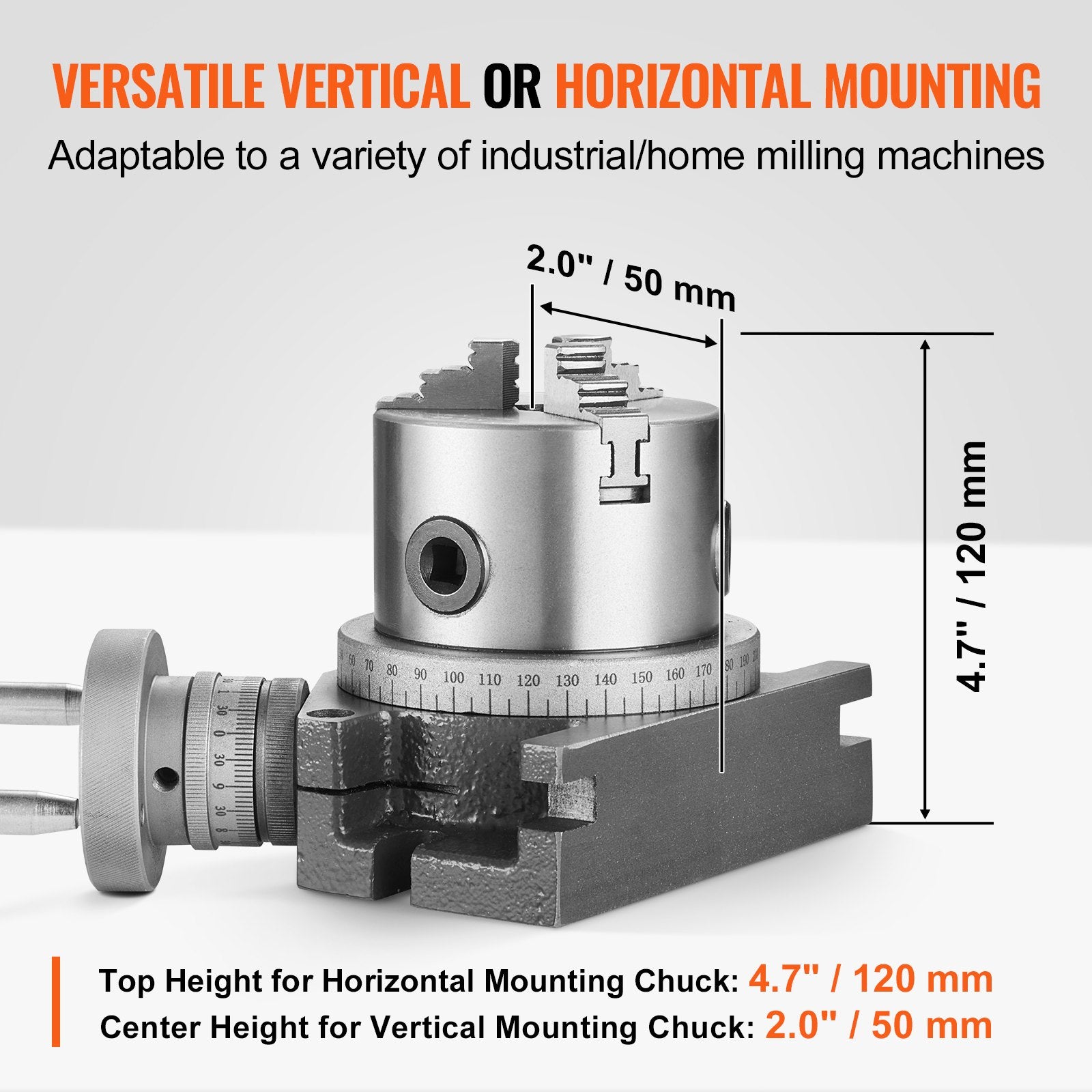

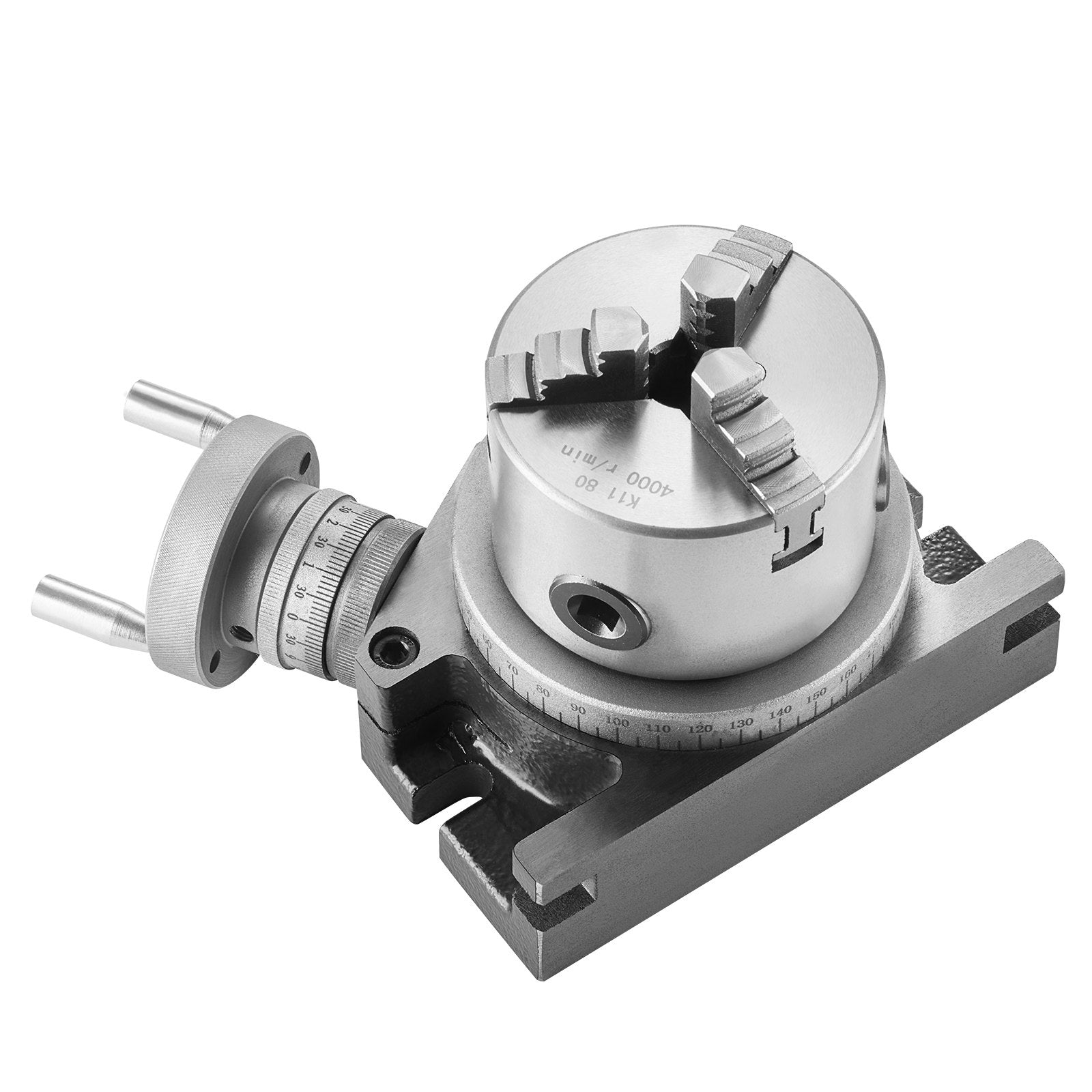

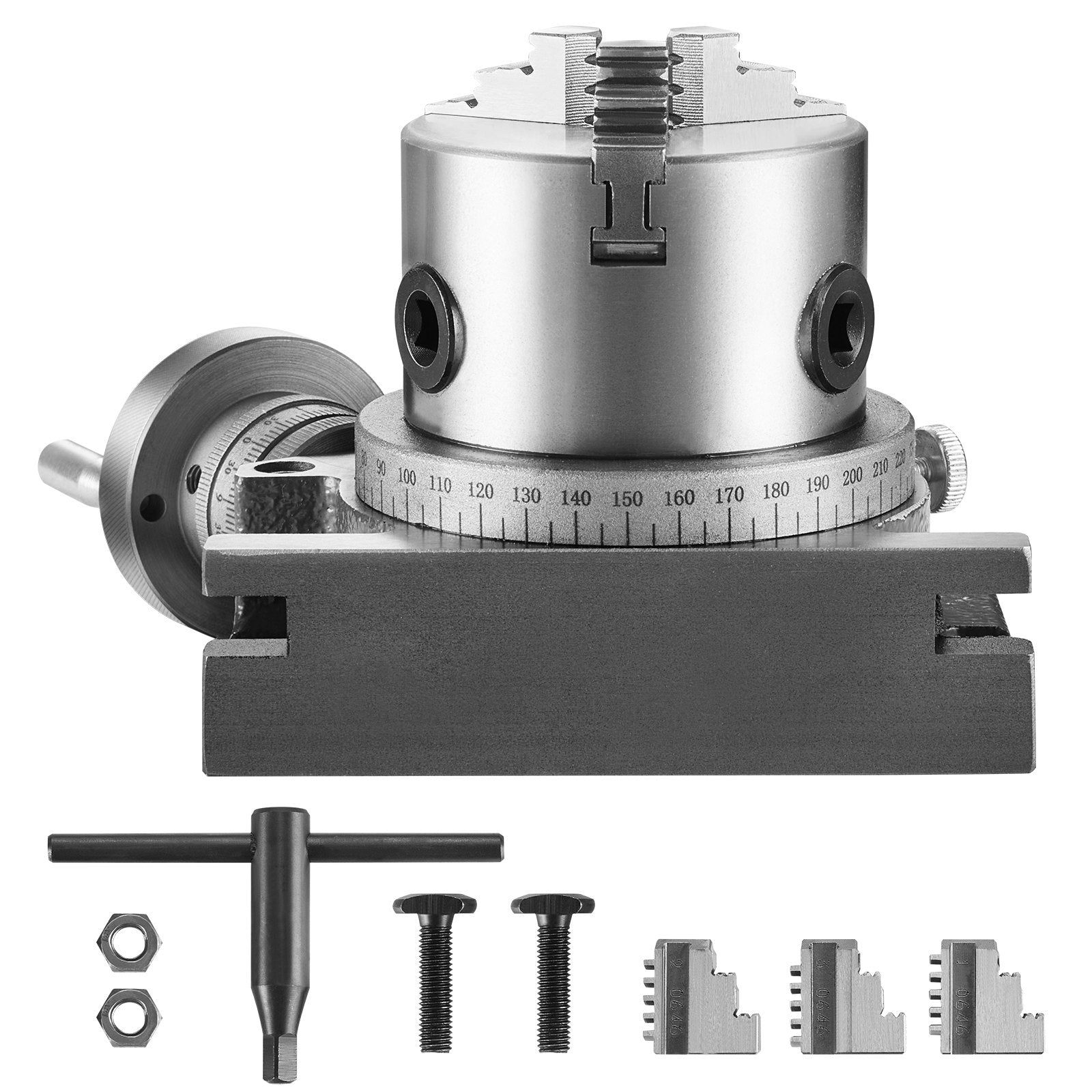

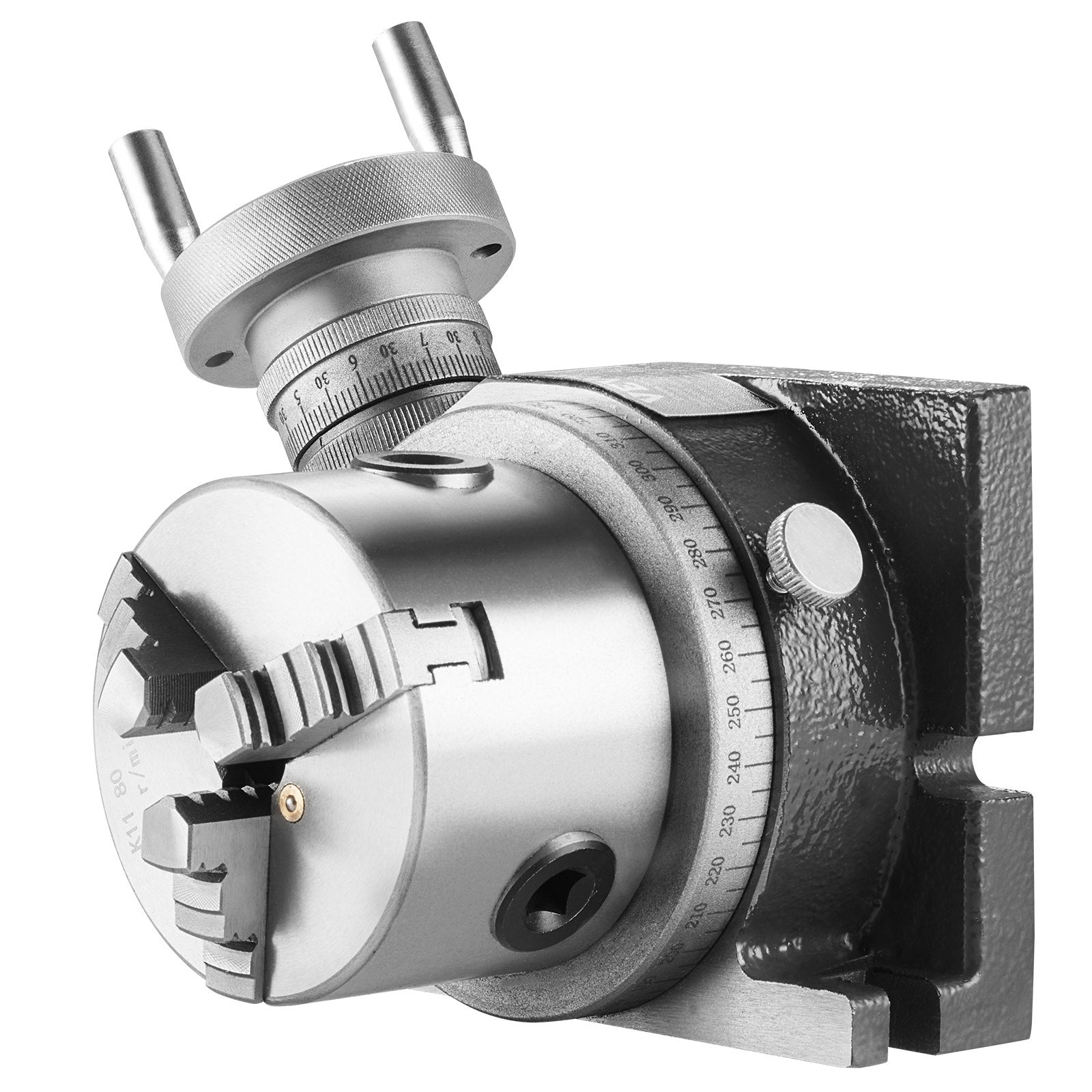

Rotary table for milling machines, 100 mm, horizontal vertical model Precision milling rotary table, with 80 mm 3-jaw chuck M10 T-bolts nuts, for milling indexing tools

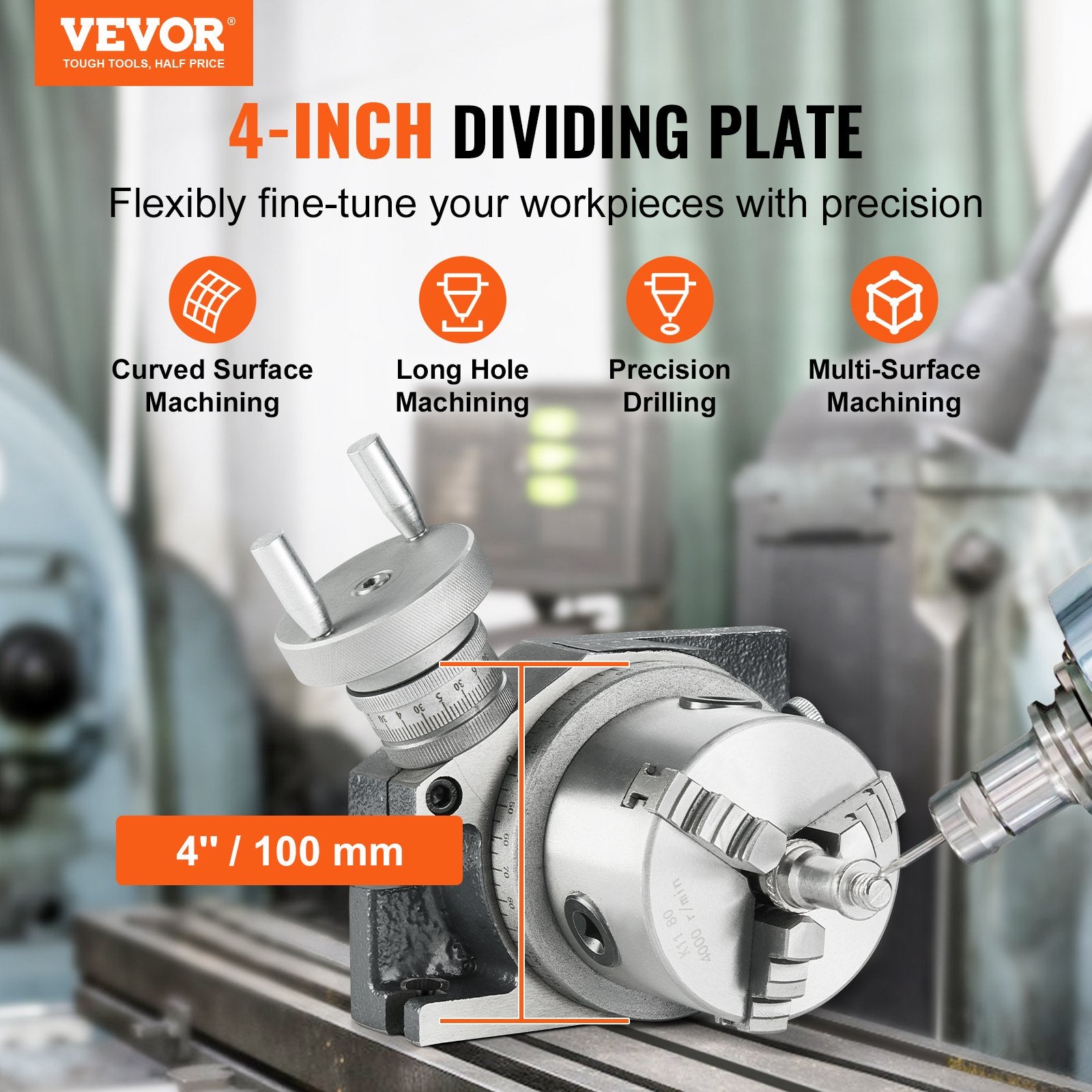

4-inch Rotary Milling Machine: Increase your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing and clamping of wood and metal workpieces for processing curved surfaces, processing elongated holes and precision drilling. Widely used in the automotive industry, mold manufacturing and general machinery, highlighting its important role in mechanical processing.

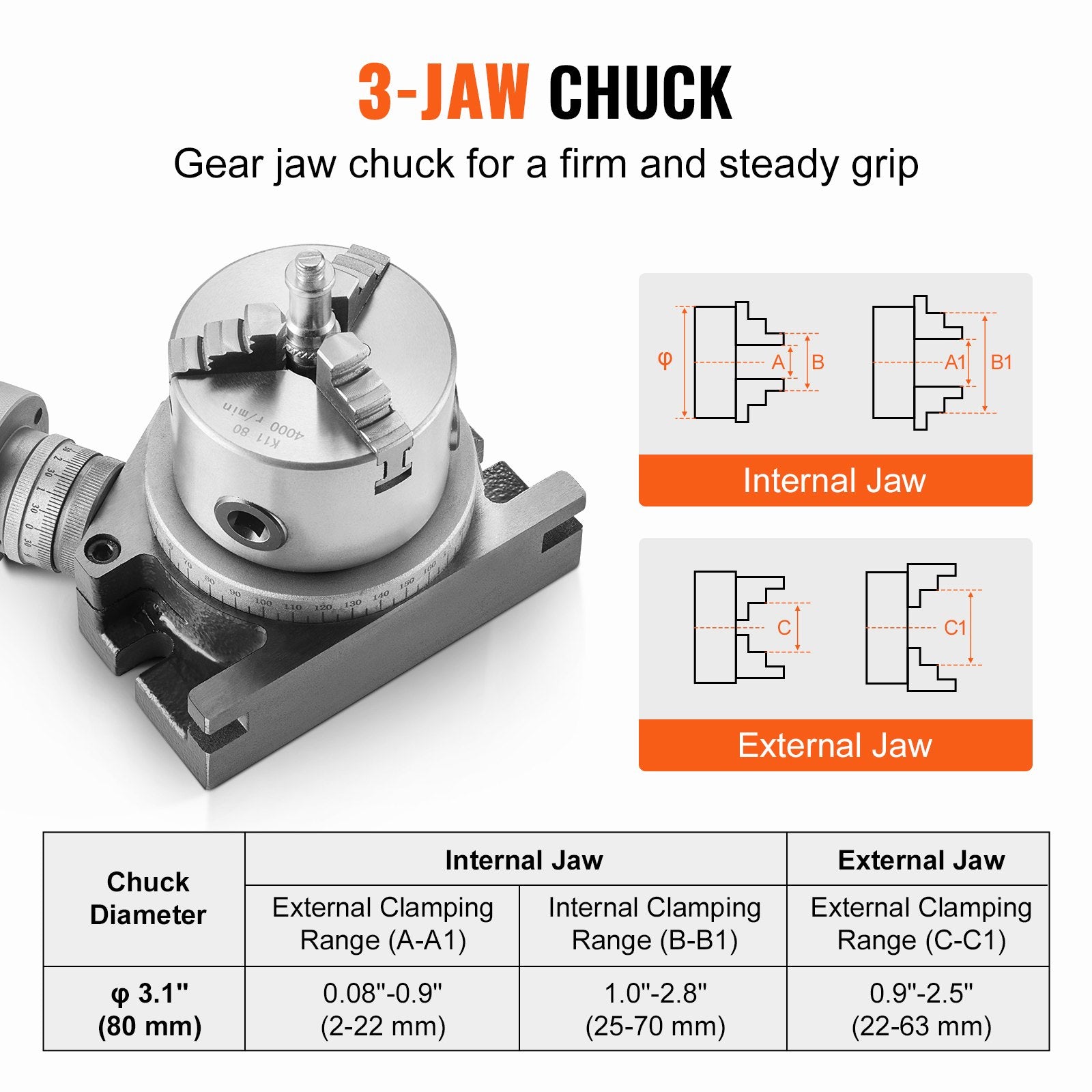

Secure small workpieces easily: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck diameter: φ 3.1'' / 80 mm. The inner jaw can be used for internal and external clamping. External clamping range: 0.08''-0.9'' / 2-22 mm, internal clamping range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and an external clamping range of 0.9''-2.5'' / 22-63 mm. Enjoy the precise and safe processing of small components!

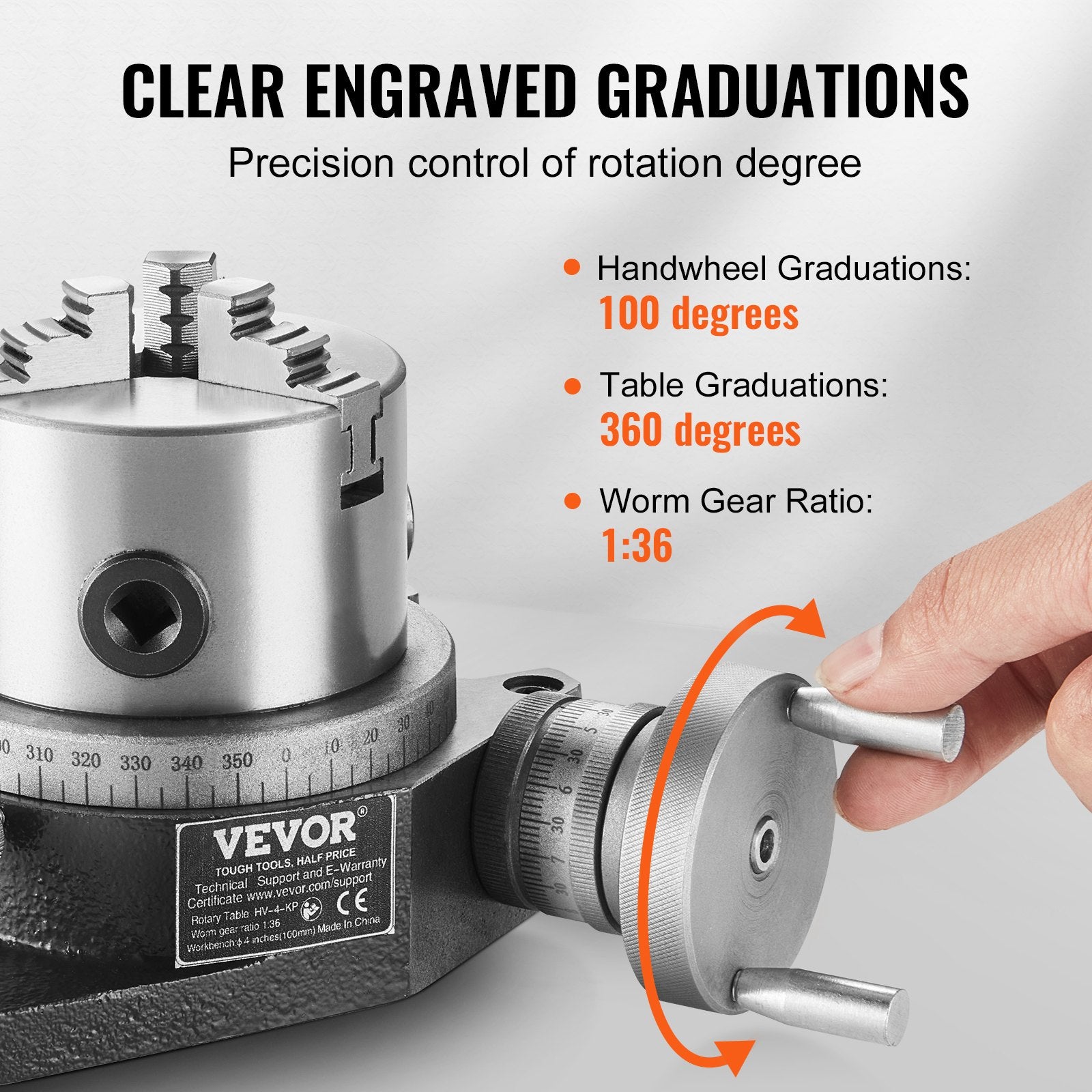

High precision at your fingertips: The milling machine's rotary table is controlled by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale is 100, while the table itself is marked with 360 degrees. With a 1:36 worm gear, a single turn of the handwheel results in a 10-degree rotation of the table, perfectly suited to intuitive operation and allowing precise control over even the smallest rotation.
