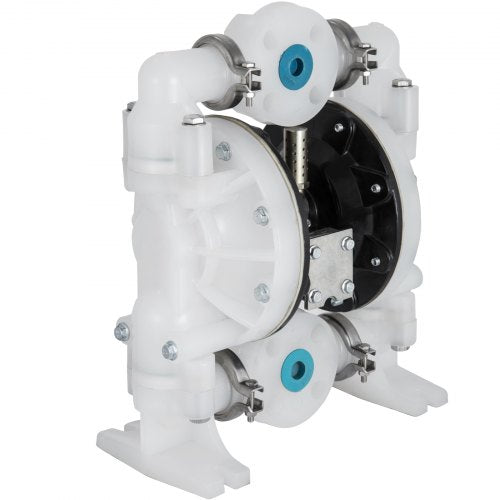

    Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use

    Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use

    $272.00 USD
    $272.00 USD
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Features & Details
    • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：79.6 GPM; Max Head Lift：275.6 ft/84 m.

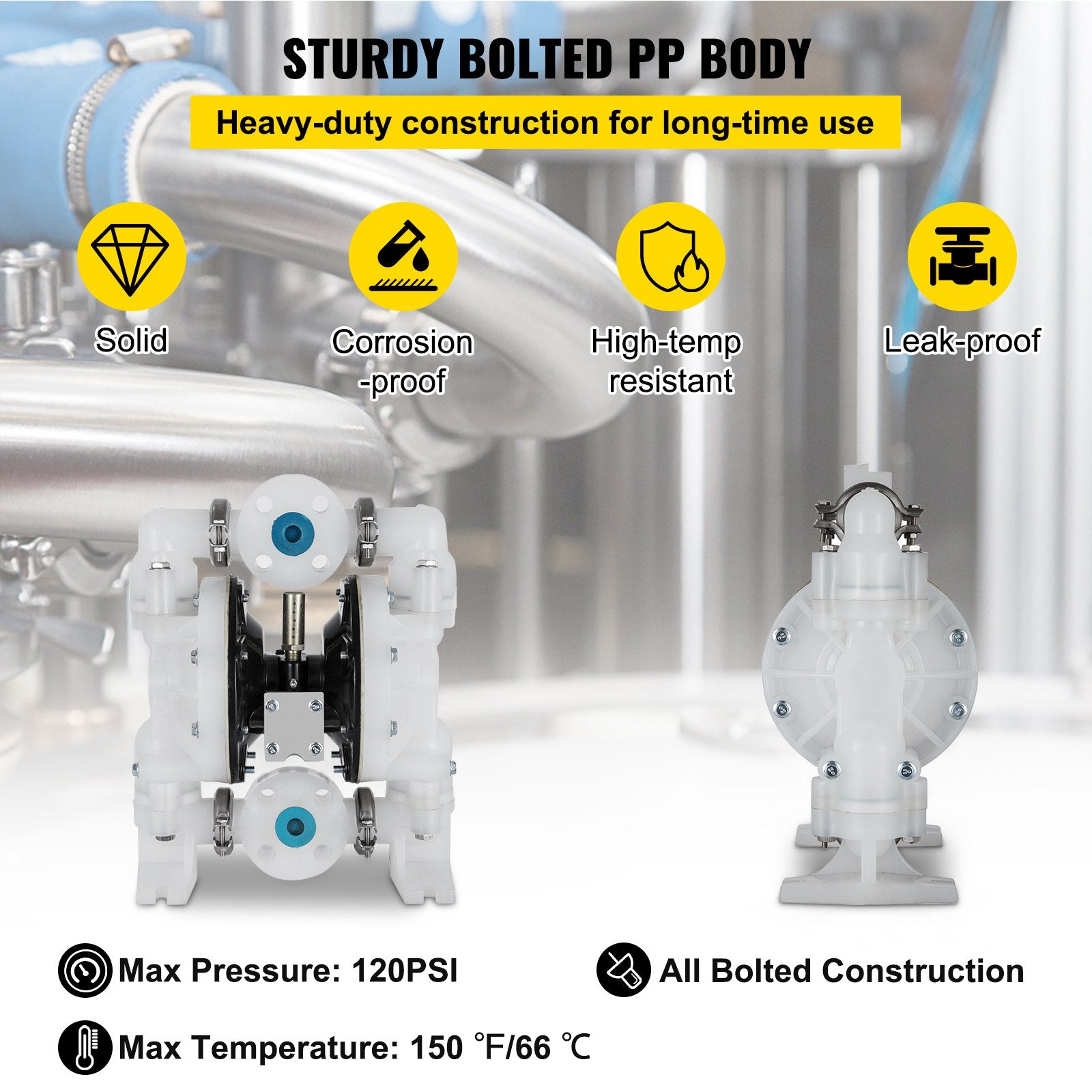

    • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

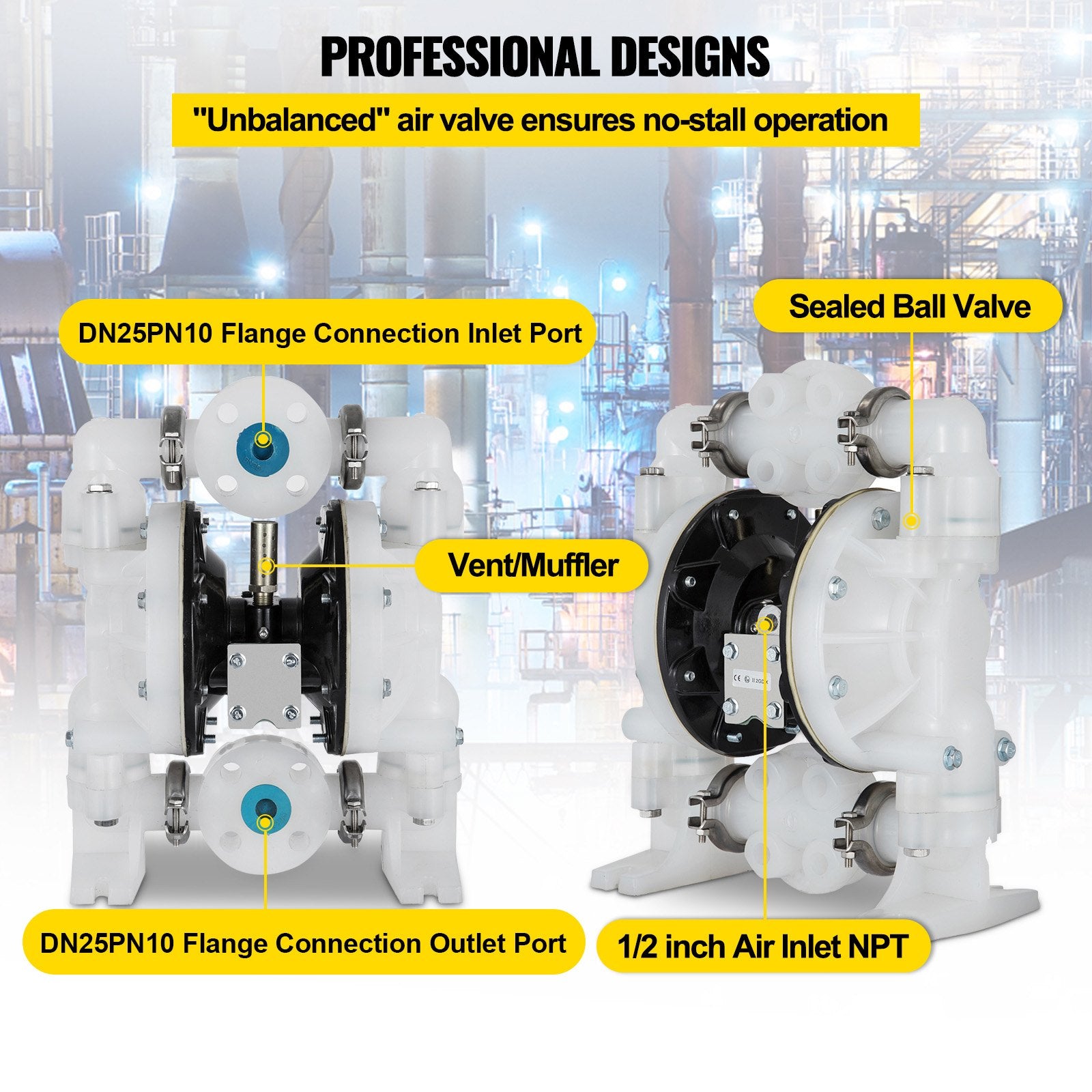

    • Excellent Air-operated Performance: Inlet/Outlet Port: DN25PN10 Flange Connection; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
    • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
    • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

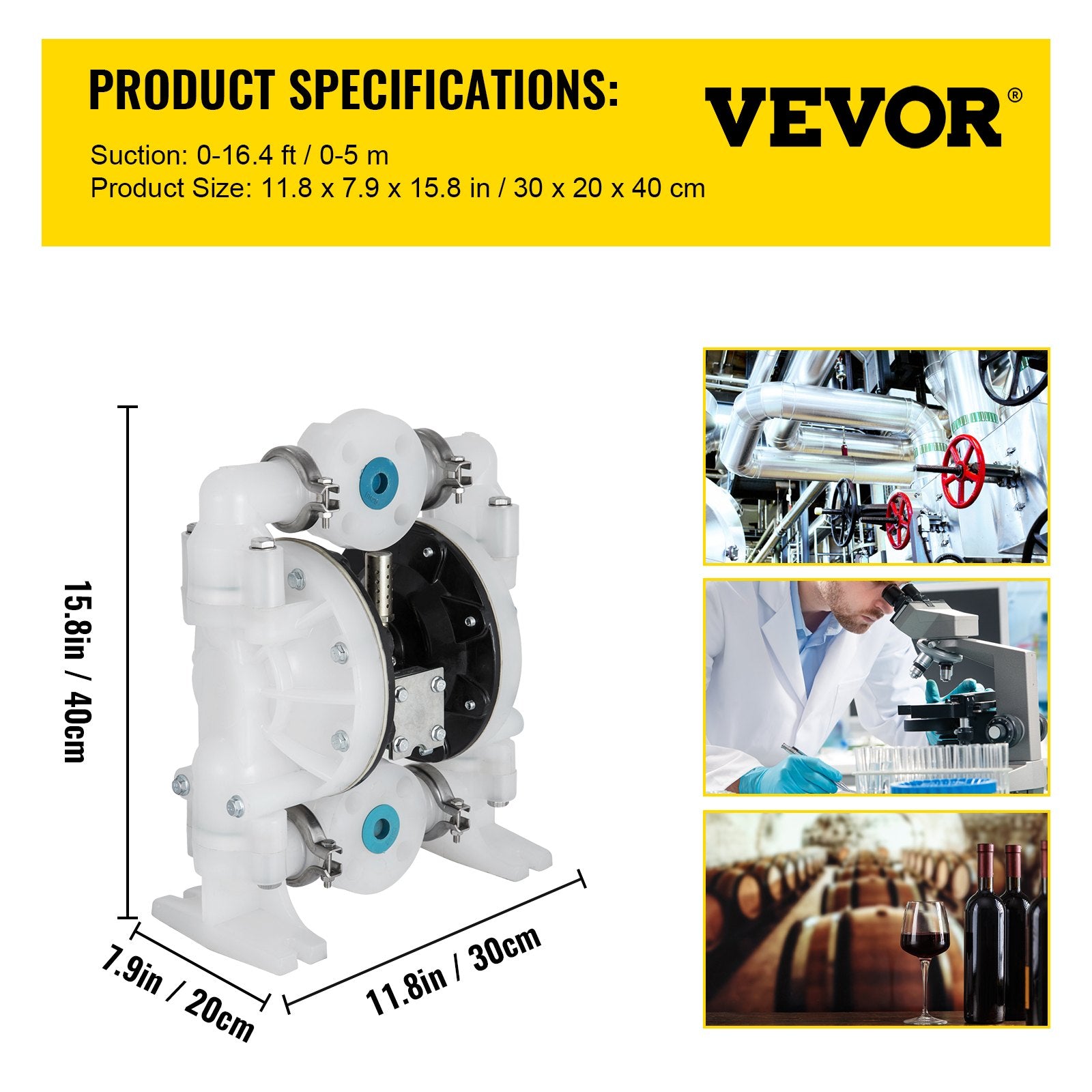

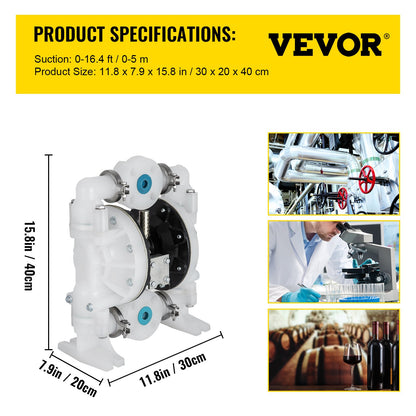

    Product Specification
    • Suction: 0-5 m (0-16.4 ft)
    • Outlet Port: DN25PN10 Flange Connection
    • Inlet Port: DN25PN10 Flange Connection
    • Air Inlet Size: 1/2 inch (12.7 mm)
    • Max Flow Rate: 79.2 GPM
    • Self-Priming Dry: 3 m (10 ft)
    • Type: Double diaphragm
    • Body Material: Polypropylene
    • Max Suspended Solids: 3 mm (1/8 inch)
    • Model: QBY4-25PP
    • Self-Priming Wet: 4.6 m (15 ft)
    • Max PSI: 120 psi
    • Max Head: 84 m (275.59 ft)
