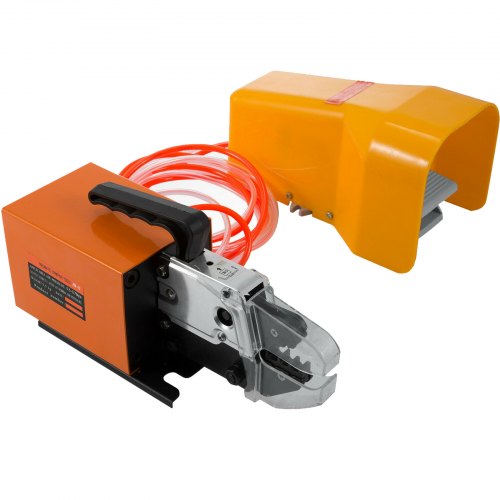

    AM-10 Pneumatic Crimping Machine Tools for Terminals w/ CE certification

    AM-10 Pneumatic Crimping Machine Tools for Terminals w/ CE certification

    $210.00 USD
    $210.00 USD
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Features & Details

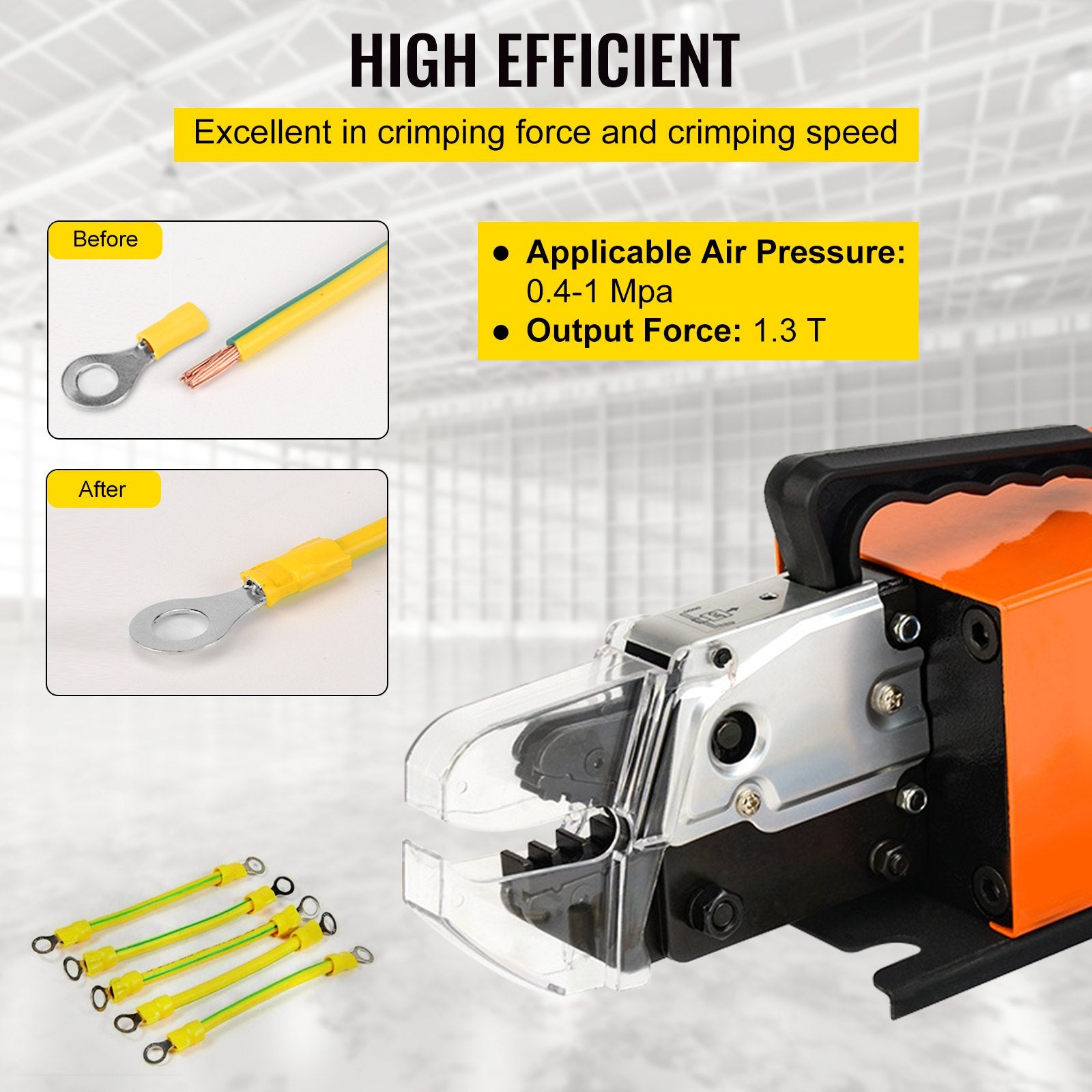

    • High Efficient: The machine is driven by a dual-action standard cylinder, which has advantages of high efficiency and quality in crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.

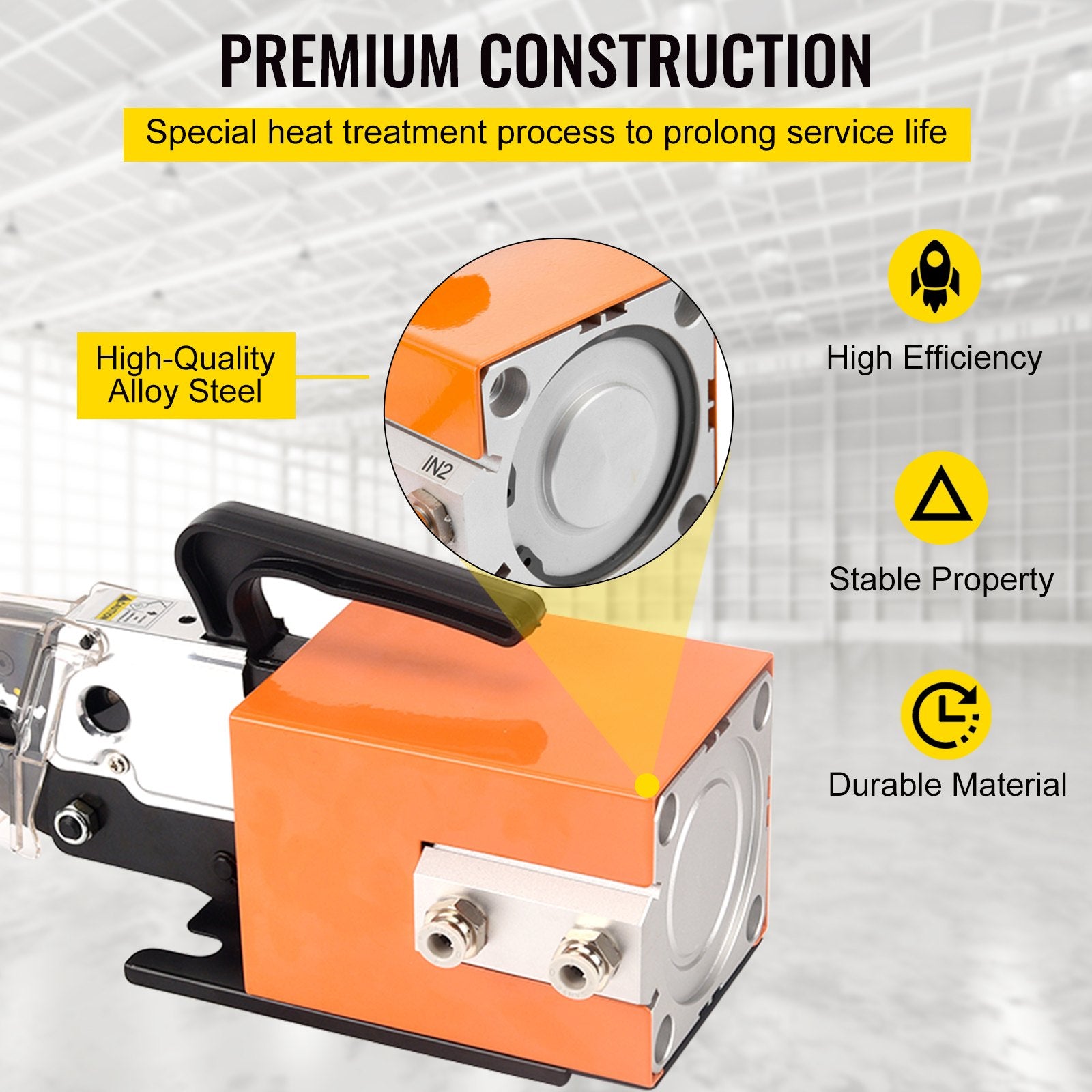

    • Premium Construction: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.

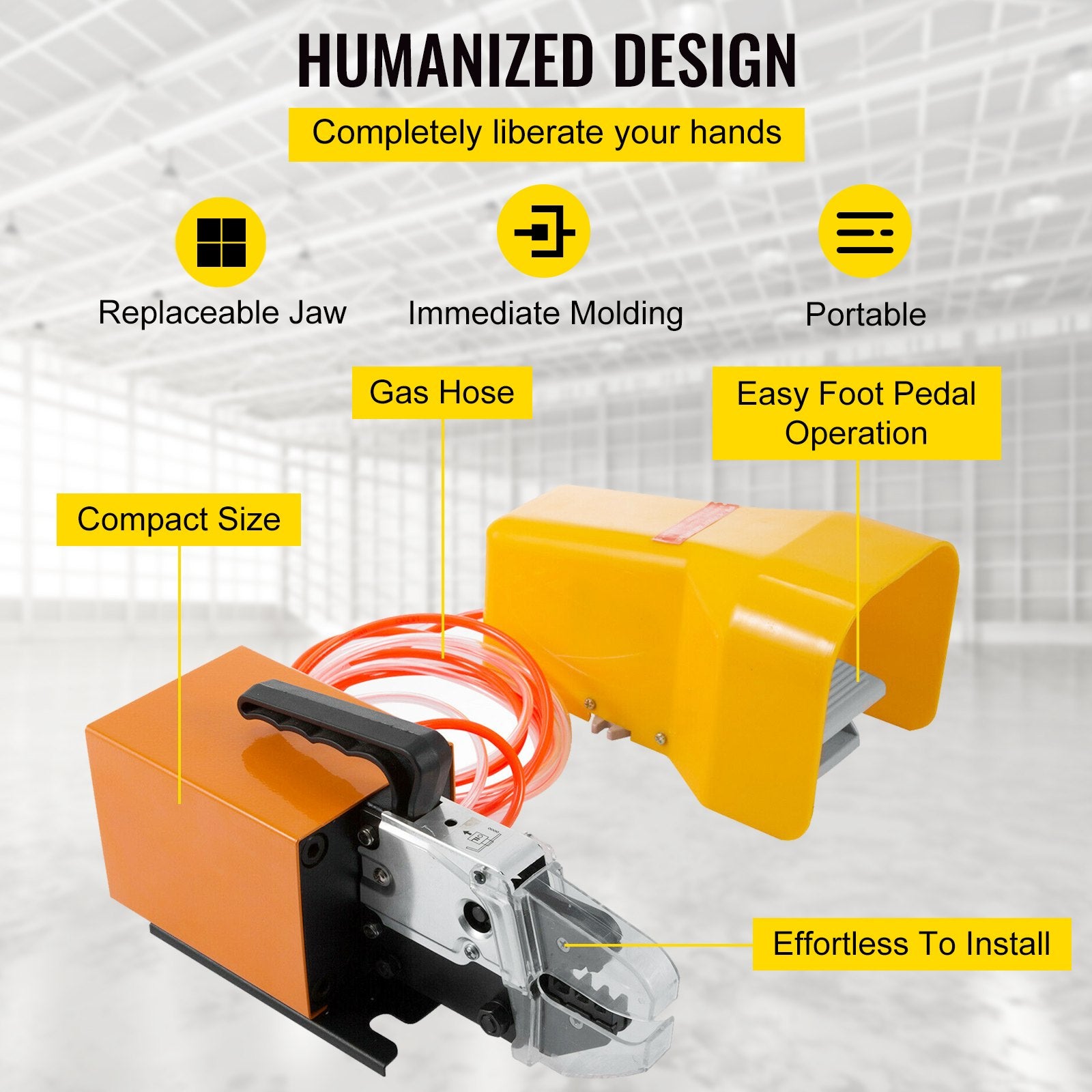

    • Humanized Design: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes. (This product only contains one die)
    • Simple To Operate: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain. NOTE: You need to prepare an 8mm (5/16 inch) air hose yourself to connect the air source to the product's foot pedal.
    • Wide Applications: The pneumatic crimping tool is suitable for a variety of terminals, crimping insulated and non-insulated cable end sleeves. To replace the mode jaws, the jaws of the protective cover and remove the screw with a tool, to replace the jawline.

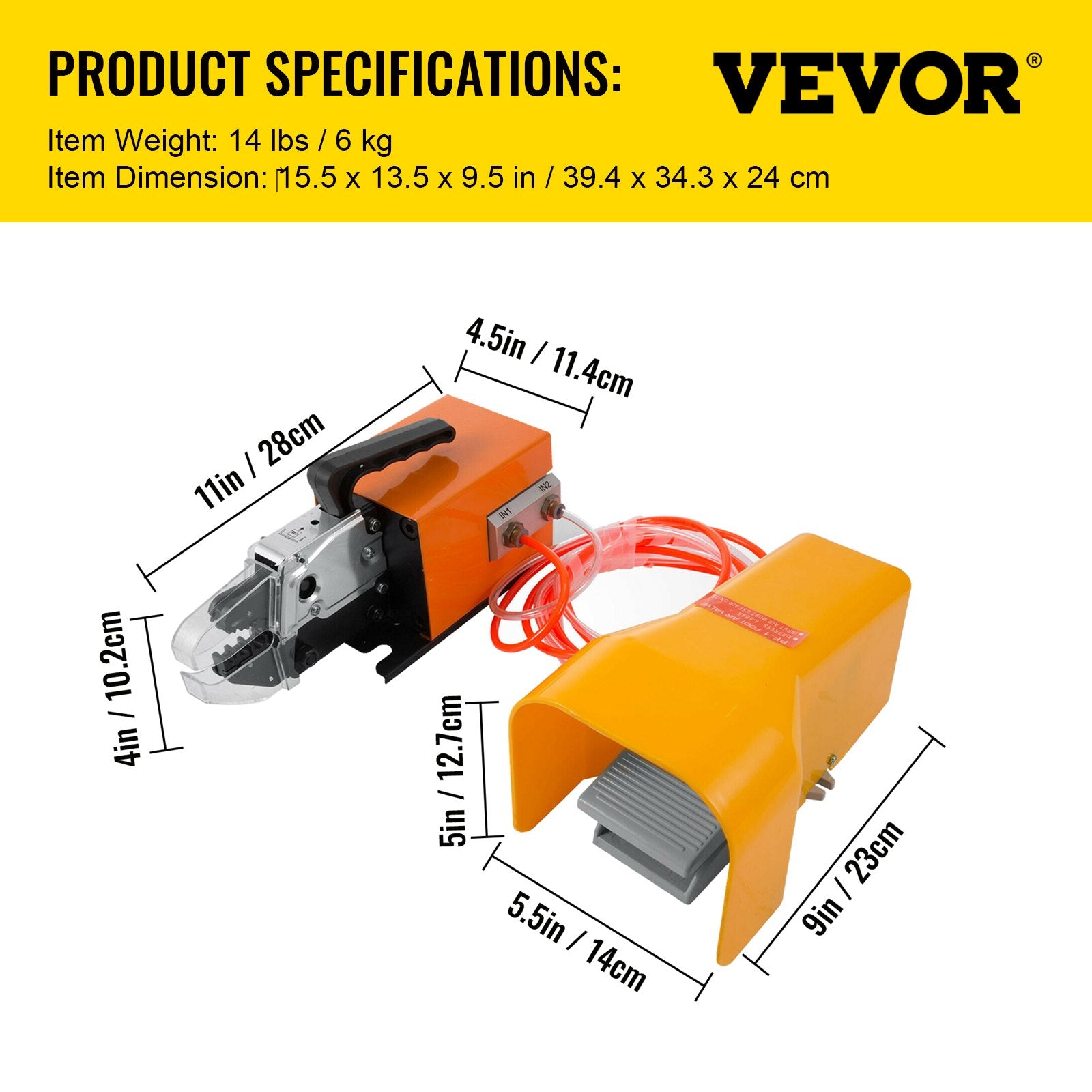

    Product Specification
    • Rre-insulated terminals ≤ 6 mm²:
    • External Dimension: 266 x 142 x 117 mm ( 9 x 5.6 x 4.6 inch)
    • Non-insulated terminals ≤ 16 mm²:
    • Max. Operating Pressure: 1.0 Mpa
    • Model: AM-10
    • Air Pressure: 0.5-0.7 Mpa
    • Output Force: 1.3 T
    • Material: Tool steel
    • Tube terminals ≤ 35 mm²:
    • Weight: 3.5 kg (7.7 lbs)
