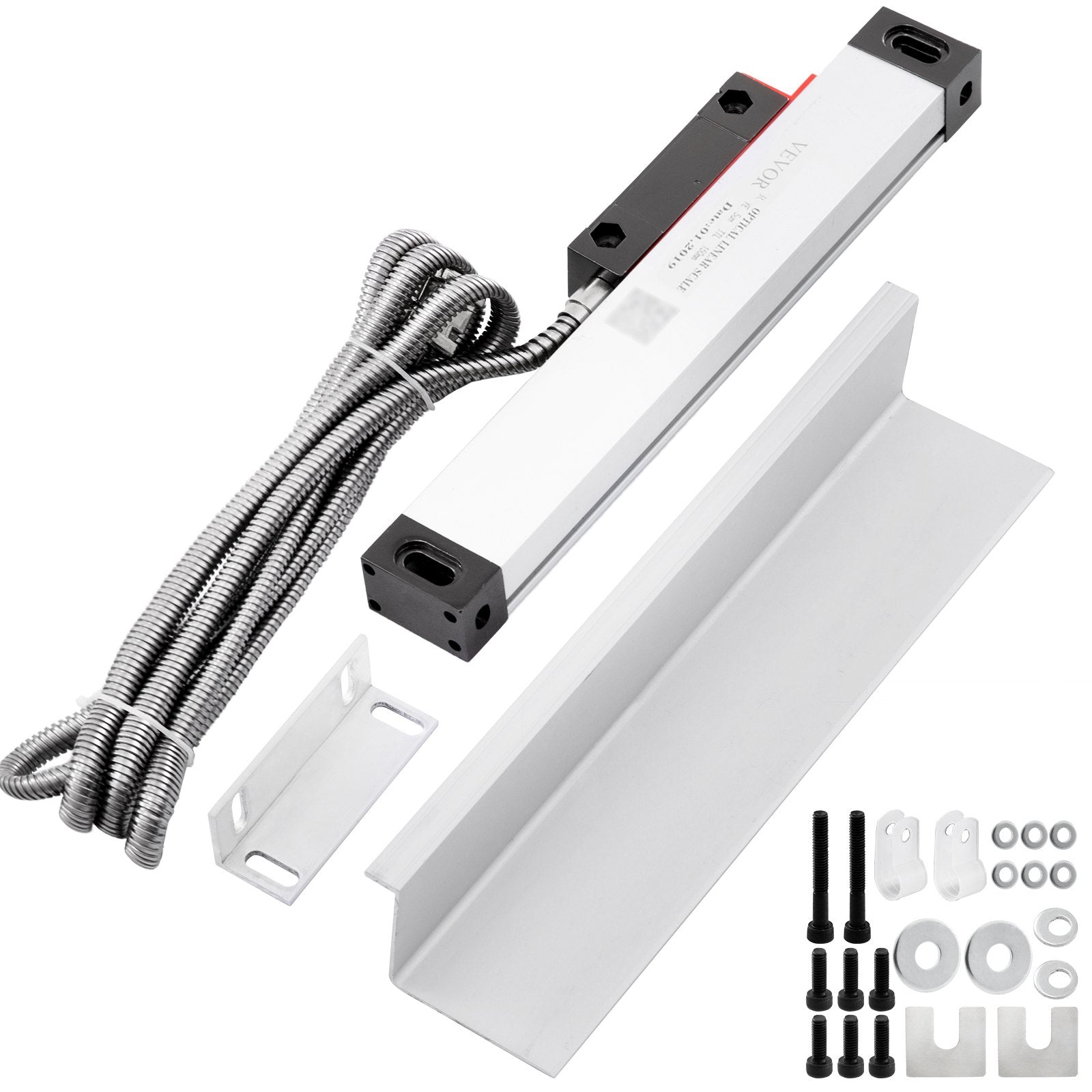

Lathe linear scale 150mm linear glass scale, high accuracy 0.0002" optical length, precision linear scale, aluminum body for drilling, grinding, milling Lathe machine with accessories

【HIGH PERFORMANCE】 - Our series of grating and precision optical rulers have undergone strict quality control. Meet the standard of accuracy and rigidity, good straightness and precise measurement. Travel length: 150 mm, Accuracy: ±0.005 mm, Resolution: 5 μm. Connector: 9-pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
【DURABLE ALUMINUM BODY】- Aluminum profile shell body and zinc alloy die-casting head with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
【DUAL SEAL AND SIGNAL CABLE】- Linear Scale Encoder has a double layer lip seal to provide extra protection against contamination, high abrasion resistance. 3m signal cable applies multi-layer shielded wire steel and metal shell protection.
【STABLE SLIDING PART】 - The sliding part has a reliable and durable design with 5 bearing system. The repeated positioning measurement is more stable. With an additional T-slot (not included in the package), the rear slot can be used for installation when the contact surface is too short, or can be an additional support when using a long linear scale.
