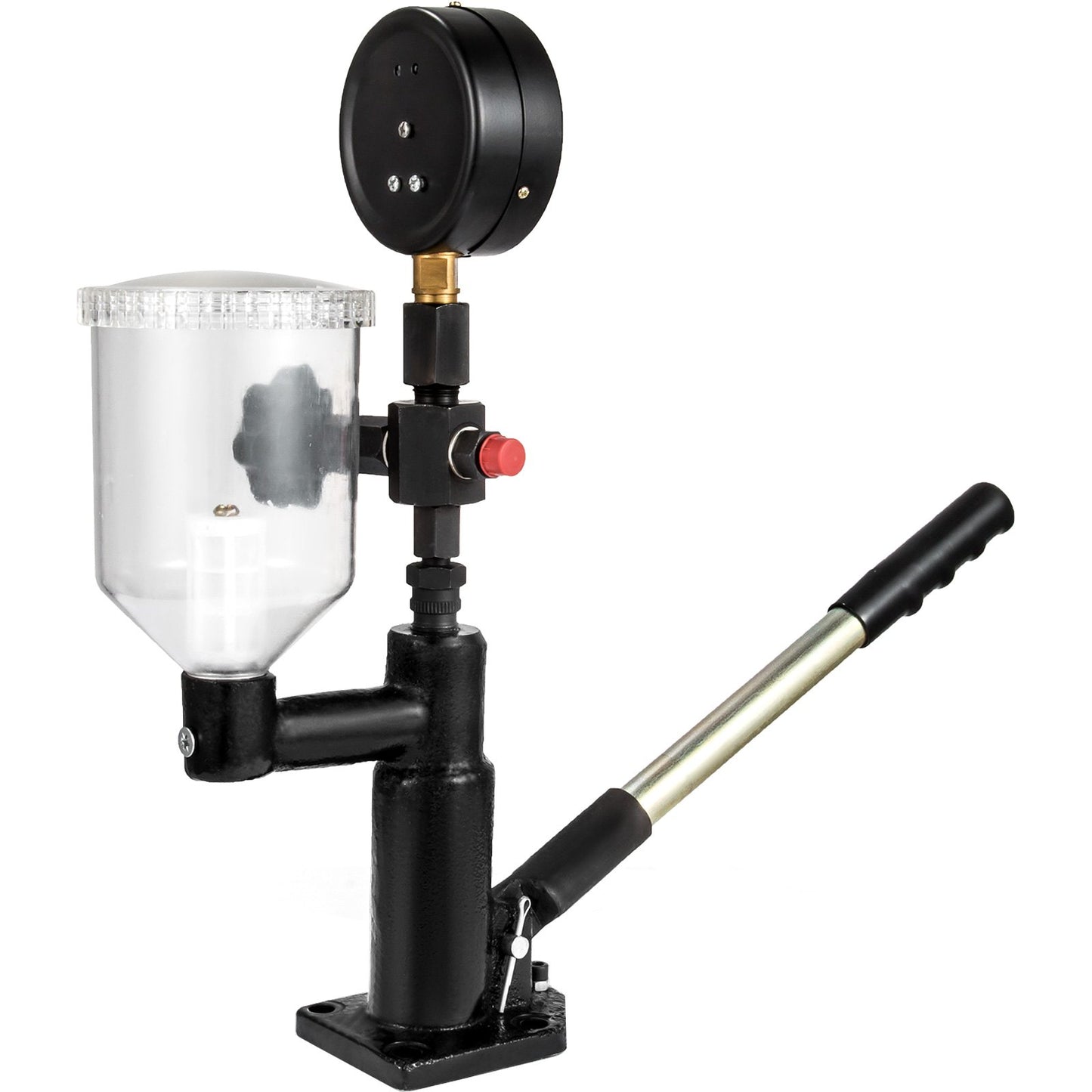

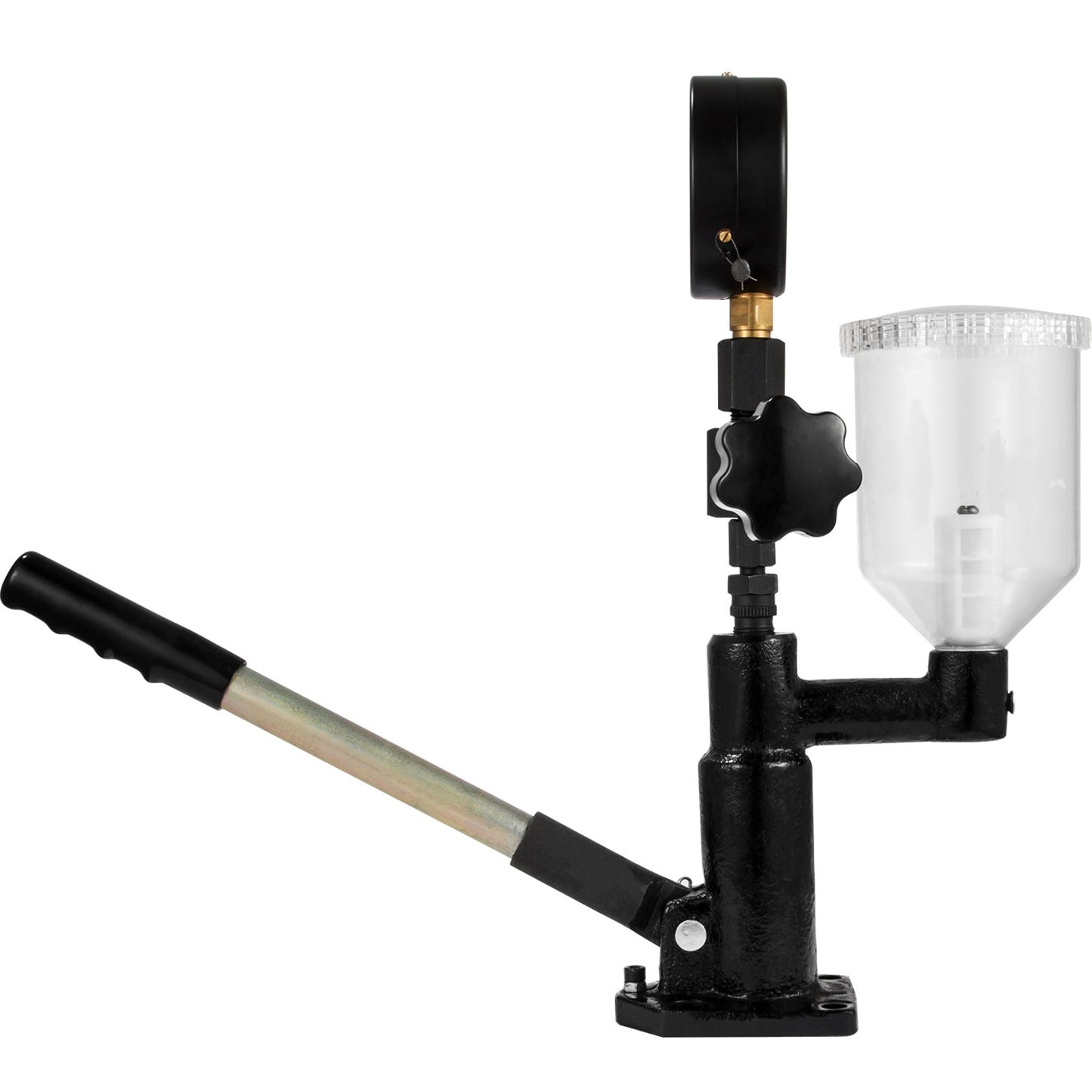

Diesel injector nozzle pressure tester, fuel injector nozzle tester with dual scale gauge to adjust injector nozzle pressure and test diesel injector nozzle pop pressure

【PREMIUM ALUMINUM QUALITY】- The diesel injector tester is forged from high-quality aluminum, with a casting process, its durability and rigidity are dramatically increased. It also consists of a plastic fuel cup to contain the fuel, and with a stainless steel pressure gauge to accurately detect the air pressure.
【LARGE MEASUREMENT RANGE】 - With precision dual scale gauge, the measurement value ranges from 0-600 bar/0-8000 psi, max test pressure up to 60M Pa. (100mm disc, 3/8" BSP thread.) The transparent fuel measuring cup holds 0.8L oil and with the filter to help perform various tests of injector nozzles.
【SUPERIOR TEST CAPABILITY】- The tool kit can perform accurate injector nozzle opening pressure test, leakage test, rattle test, spray pattern inspection and atomization. With such multifunctional testing capacity, the diesel injector tester is the ideal tool for auto diesel injector examination.
【STANDARD ACCESSORIES】- The injector pop test kit is equipped with 60MPa pressure gauge, handle, high pressure pipe, A and B type with mm size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element and supply valve. Two extra oil pipes are included in the package for your testing use.
