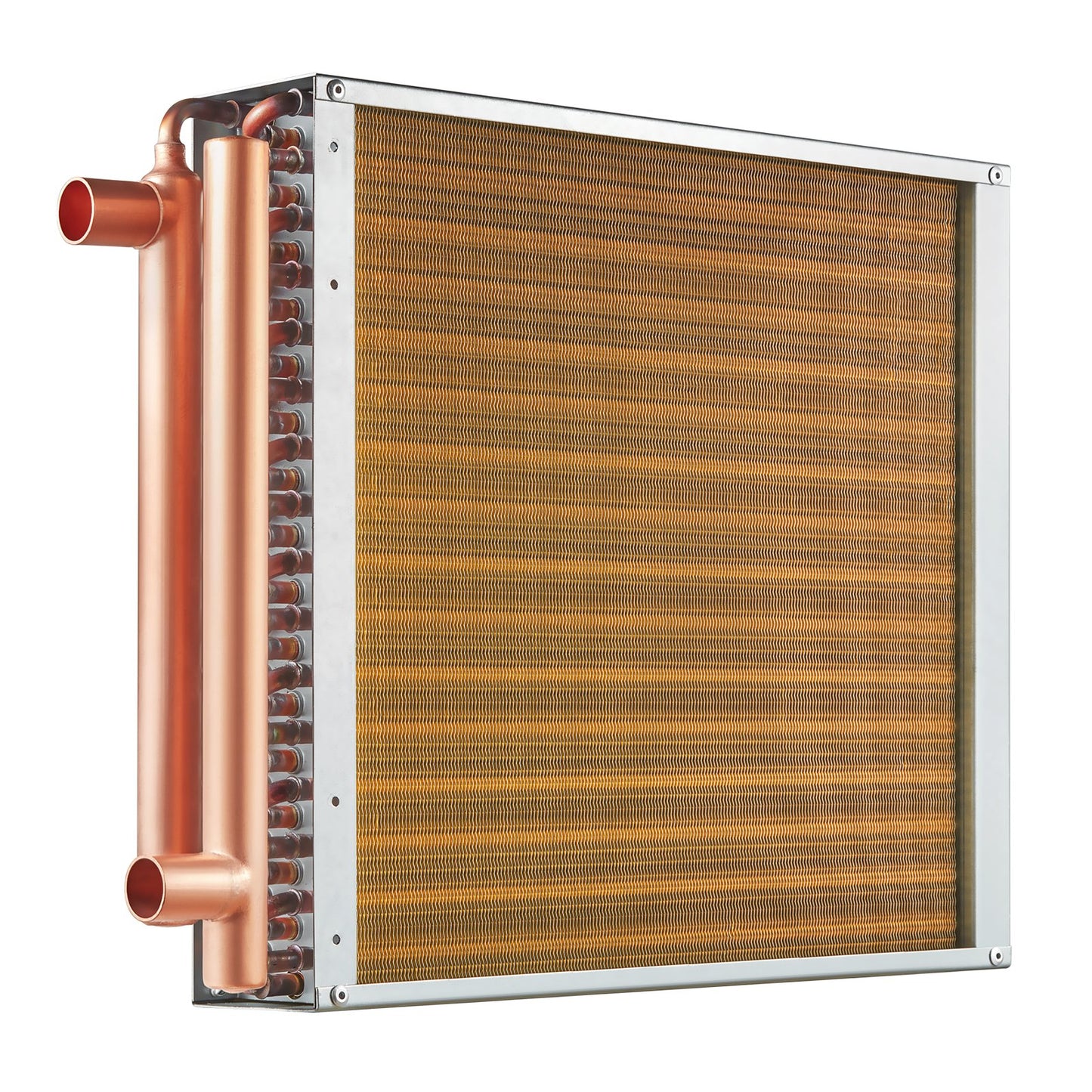

High-quality materials: The entire unit is copper-brazed at edges and contact points, forming a durable and leak-resistant piece that can withstand high pressure and temperature.

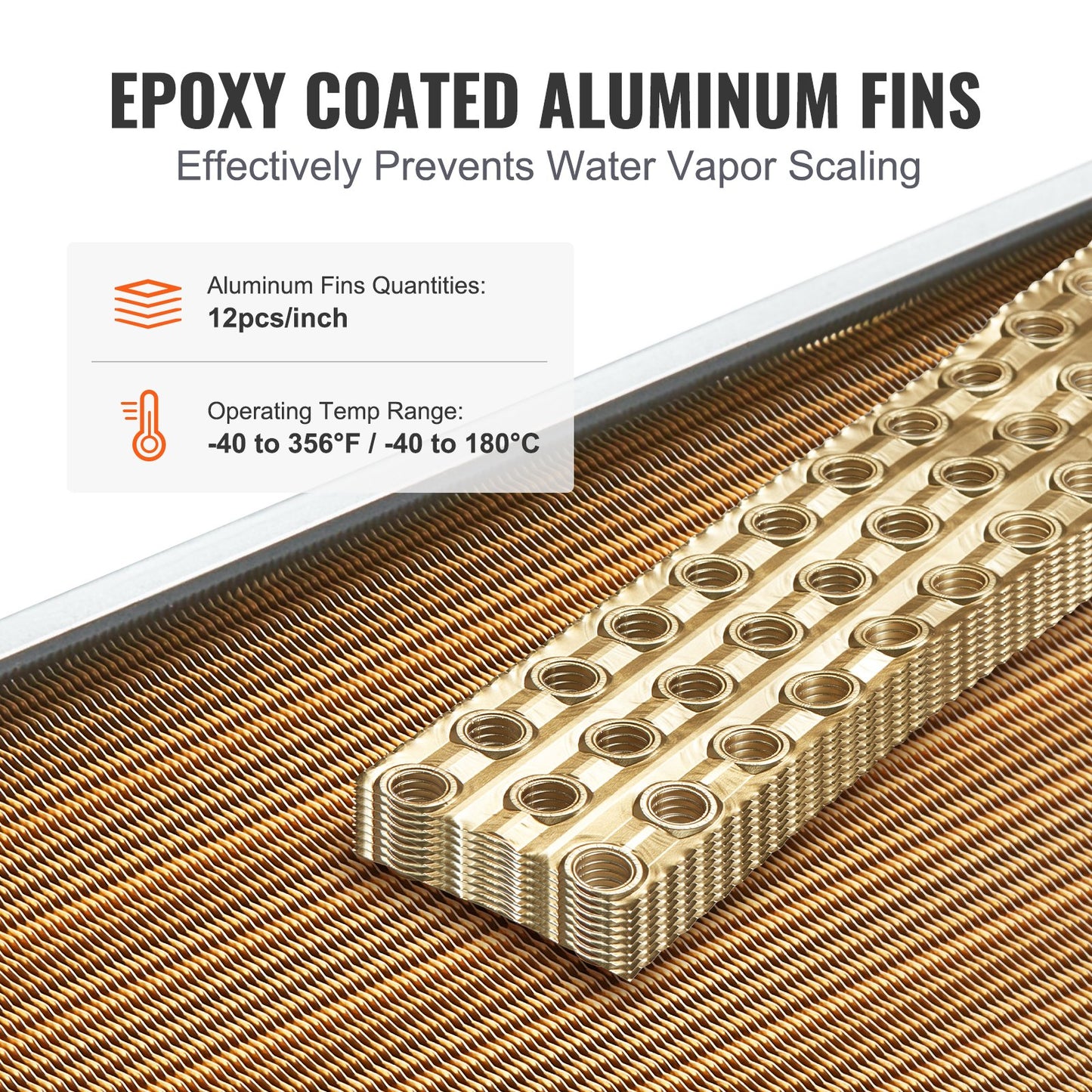

Durable and Corrosion Resistant: Features epoxy-coated fins, providing high hardness, wear resistance and corrosion protection. This reduces internal water vapor deposits, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.
Efficient heat transfer: The heat exchanger generates up to 160 kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the liquid medium, significantly improving the performance of the heat exchanger.

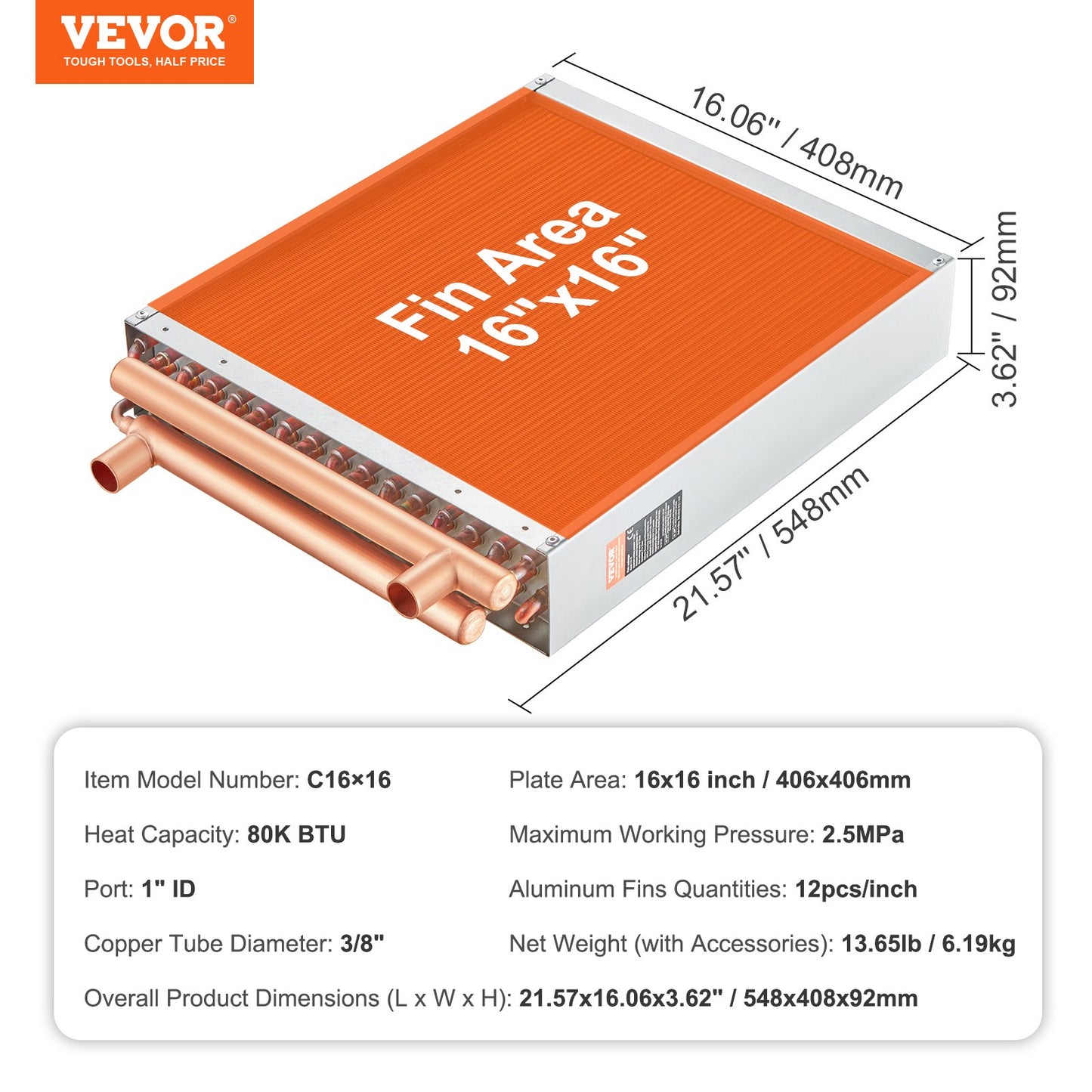

Large heat exchange area: With an effective heat exchange area of 16"x16" and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.

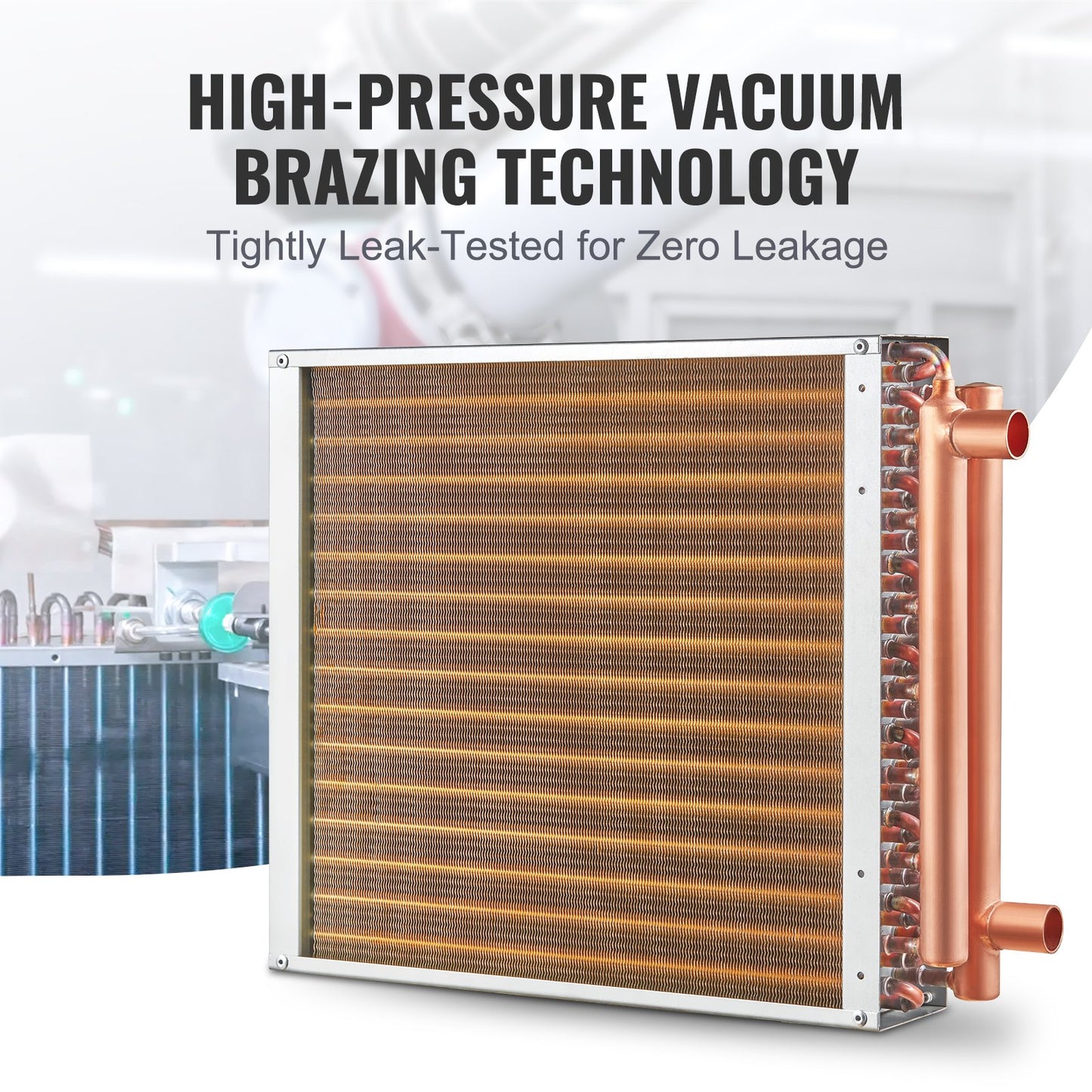

Tight and leak-proof: To eliminate the risk of micro-leakage, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long service life and high reliability.
