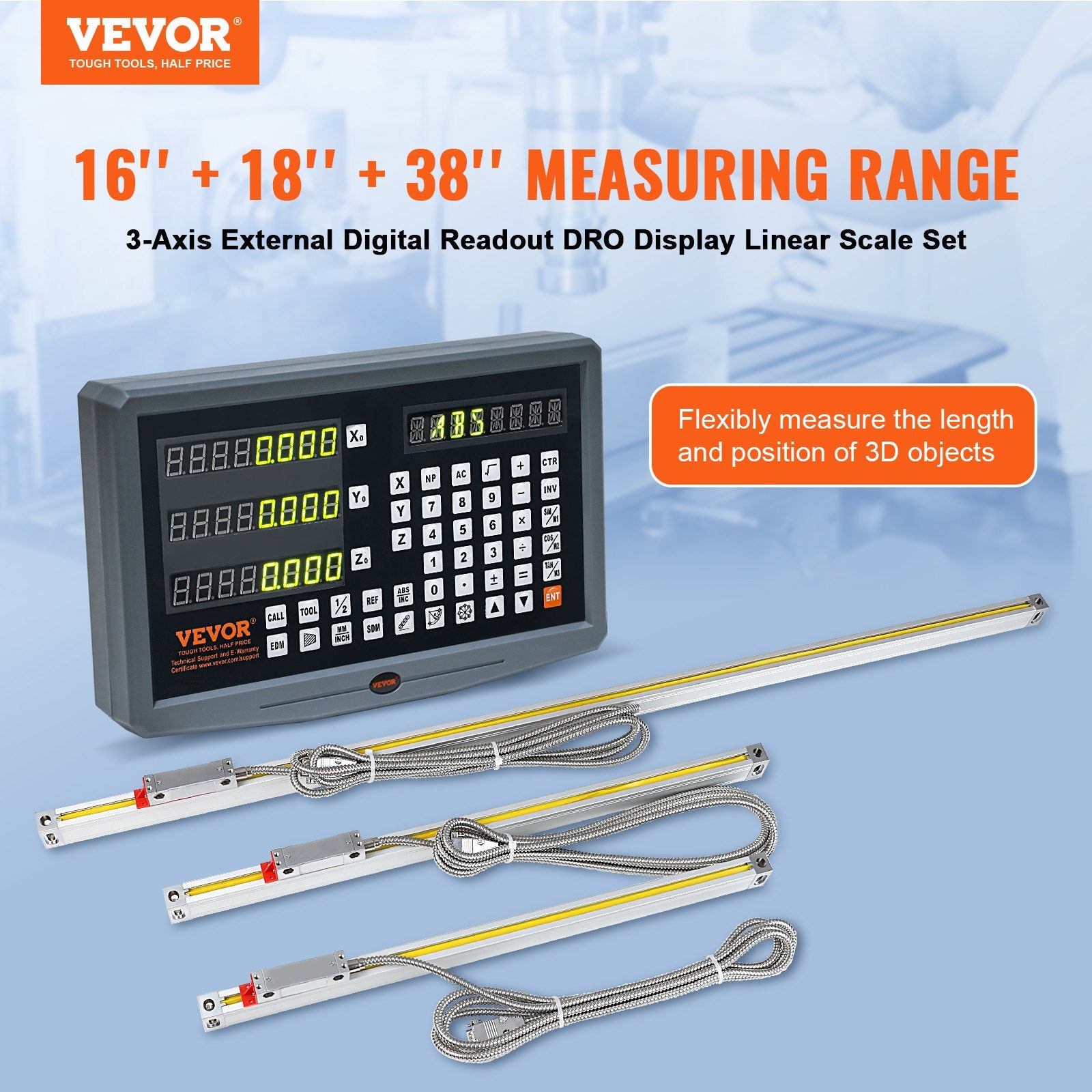

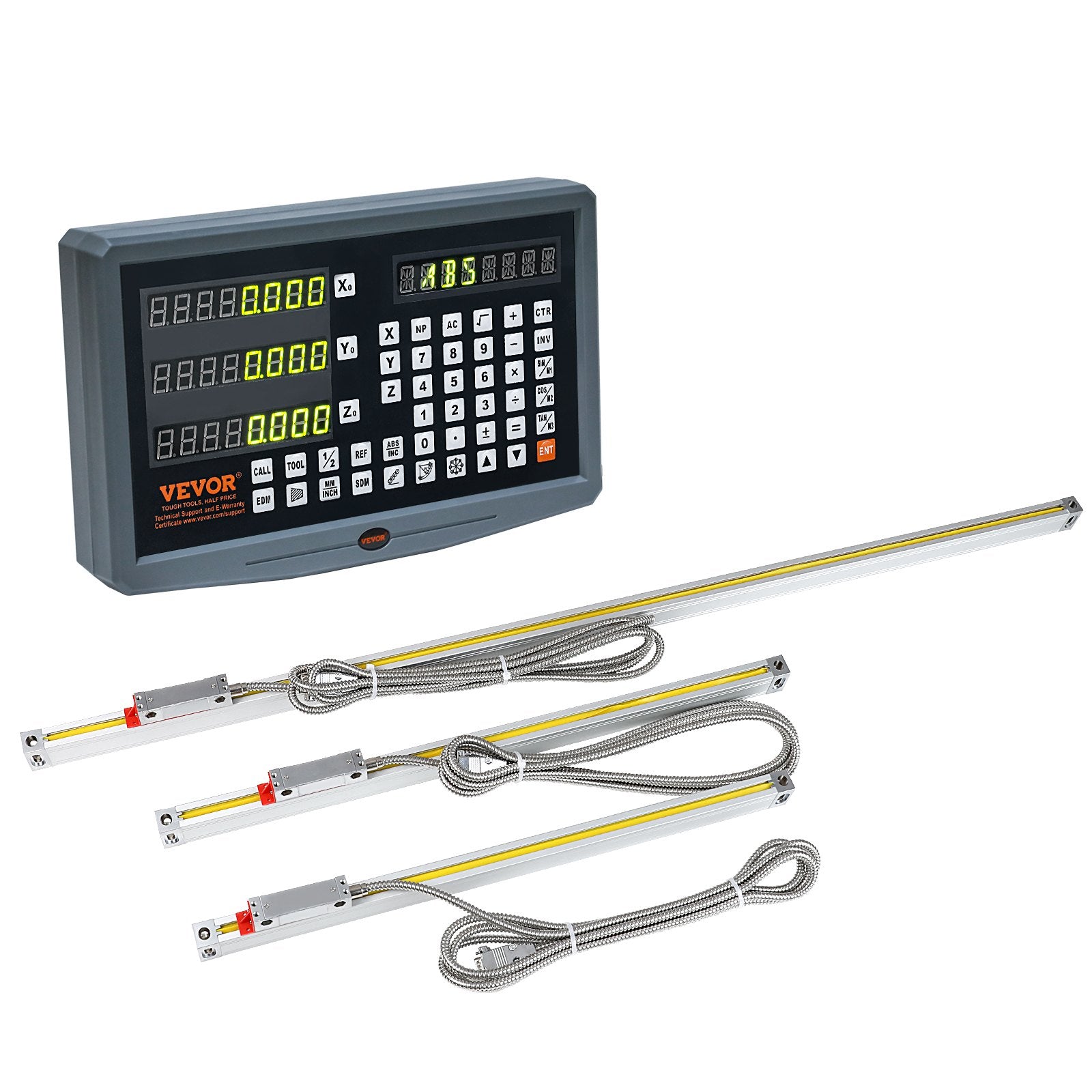

16'' + 18'' + 38'' Travel Length: Experience versatility with our 3-axis linear scale, offering three travel lengths: 16"/400mm, 18"/450mm and 38"/950mm. Customize to your specific needs on the X-axis (length), Y-axis (height) and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone and metal. Facilitate high-precision processes such as circumferential drilling.

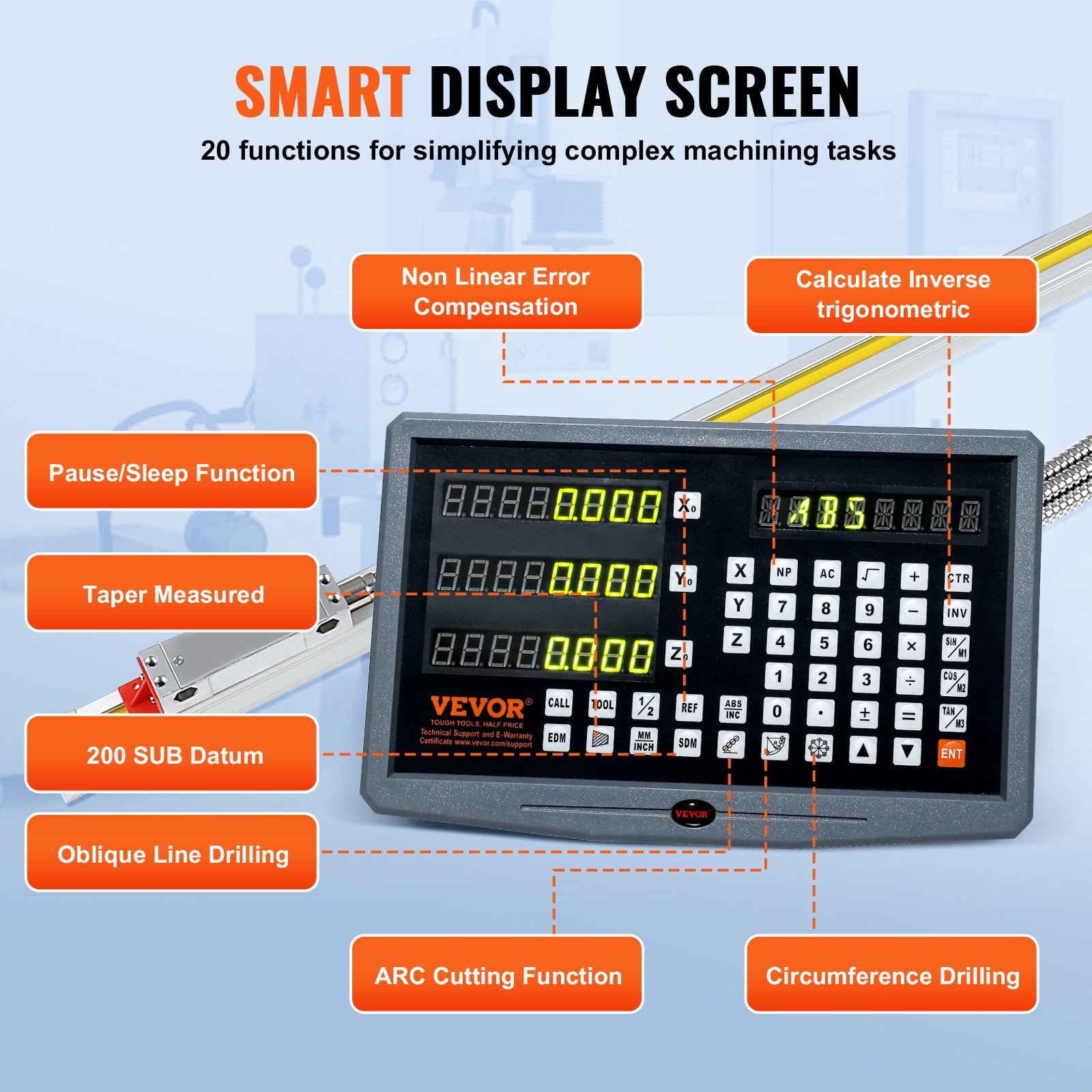

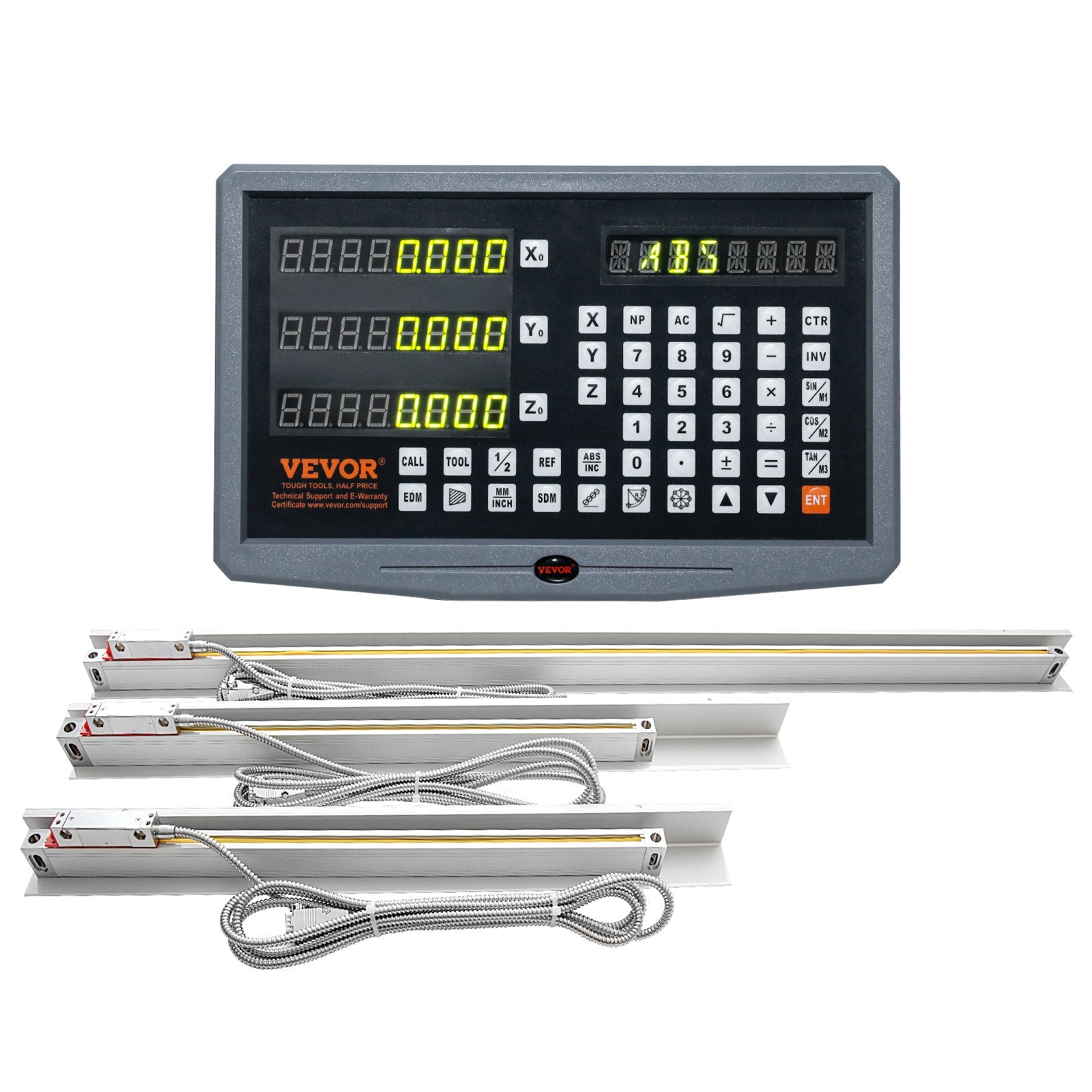

Multifunctional Crystal Clear Display: Our display offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zero setting, unit conversion, pause rest, power-off memory, non-linear error compensation and more. Specialized functions include ARC cutting function, circumferential drilling, oblique line drilling and calculating inverse trigonometric.

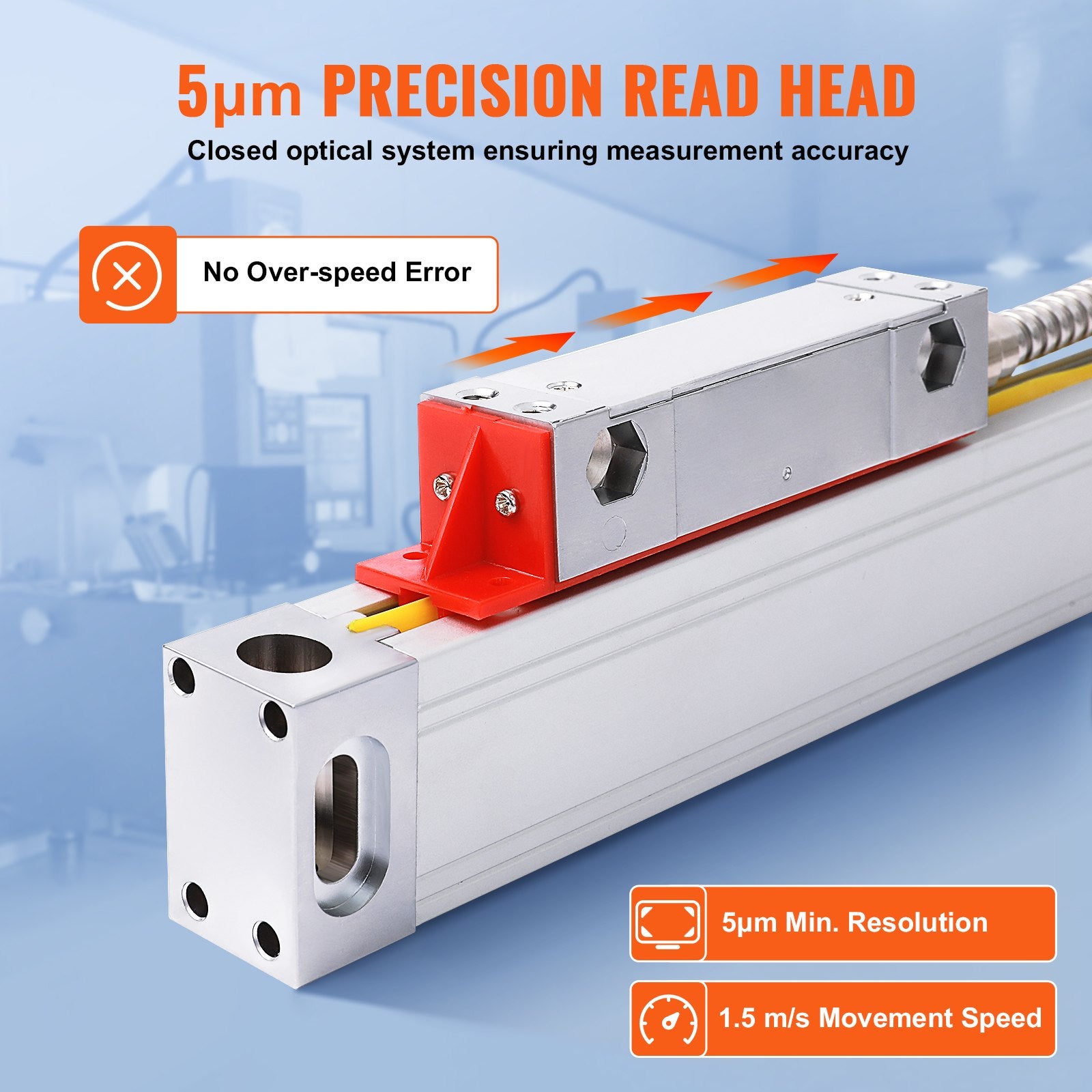

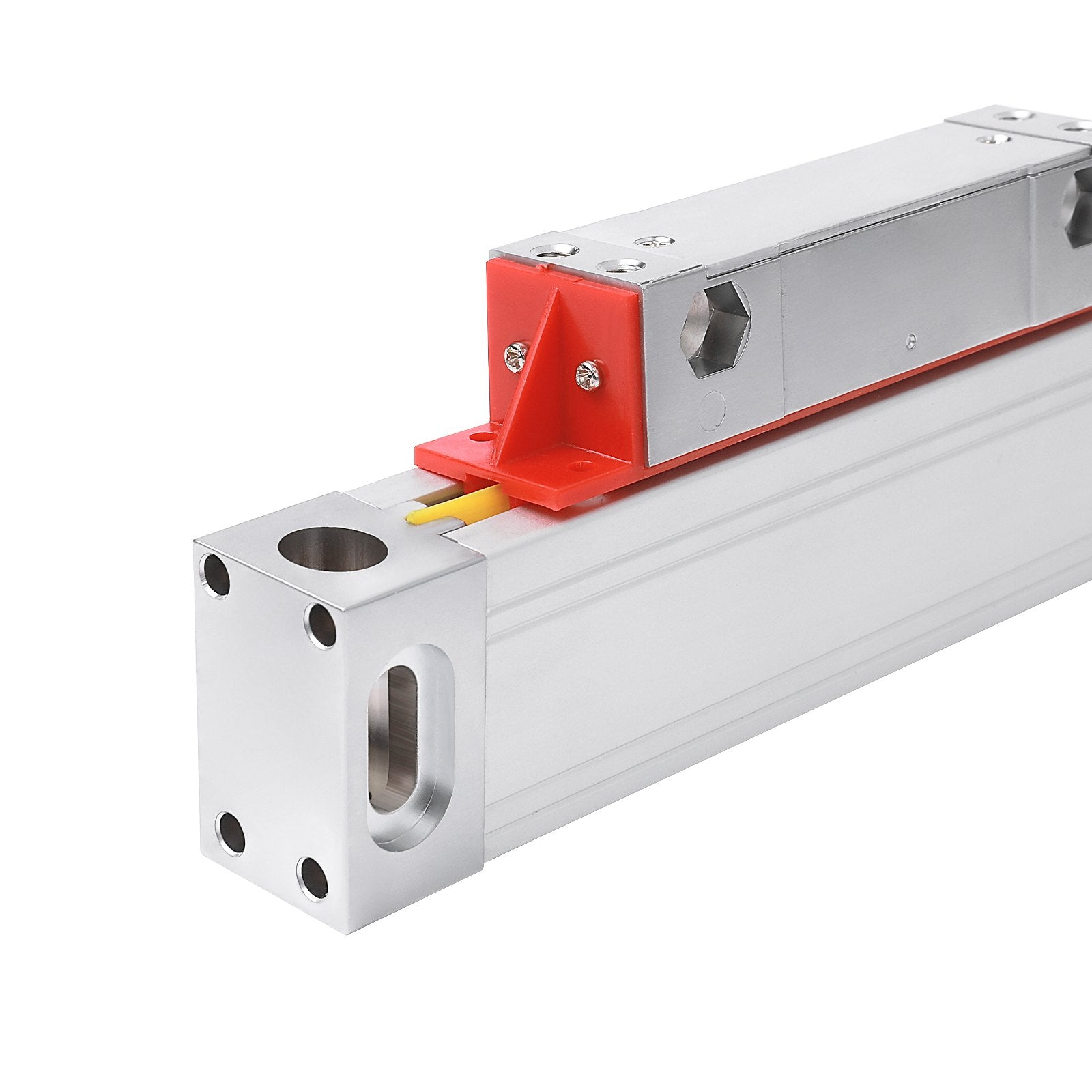

Precision 5 μm readhead: Our linear scale has a remarkable minimum resolution of 5 μm. Even at the longest range of 38 inches (950 mm), it exhibits an error of only 0.004 inches (0.1 mm) during standard and repeated measurements. With a fast readhead movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision is redefined, where every micron counts.
